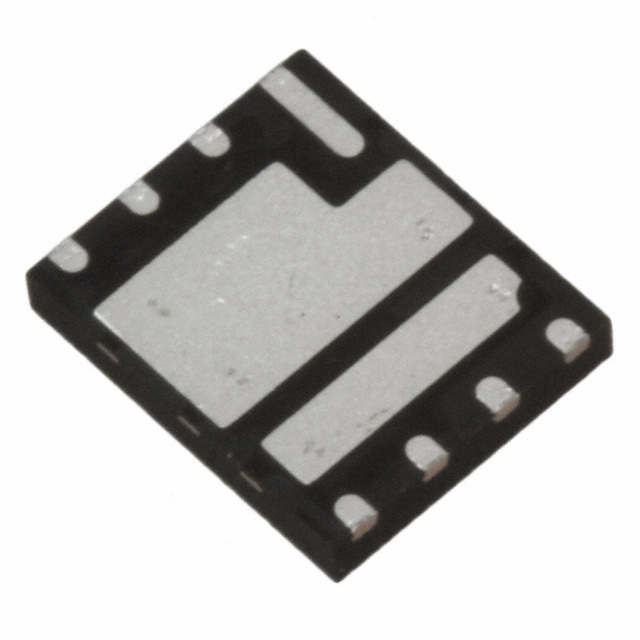

IRFH4257DTRPBF Infineon Technologies
Same model may have multiple batches, images only for reference.

IRFH4257DTRPBF

Part No IRFH4257DTRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 25V 25A 24PQFN
Datasheet
IRFH4257DTRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 25V
Continuous Drain Current at 25°C 25A
Maximum Rds On at Id,Vgs 3.4 mOhm @ 25A, 10V
Gate-Source Threshold Voltage 2.1V @ 35μA
Max Gate Charge 15nC @ 4.5V
Max Input Capacitance 1321pF @ 13V
Maximum Power Dissipation 25W, 28W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package Dual PQFN (5x4)
Win Source Part Number 1046864-IRFH4257DTRPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRFH4257DTRPBF CAD Model

Description

The Infineon Technologies IRFH4257DTRPBF FET is a high-performance device that is designed for use in a variety of applications.

  • Drain-Source Breakdown Voltage: 25V
  • Continuous Drain Current: 25A @ 25°C
  • Channel: Dual N-channel
  • Gate: Logic level
  • Maximum Power Dissipation: 25W
  • Maximum Rds On: 3.4 mOhm @ 25A, 10V
  • Gate-Source Threshold Voltage: 2.1V @ 35μA
  • Maximum Gate Charge: 15nC @ 4.5V
  • Package: Dual PQFN (5x4)
  • Lifecycle Status: Obsolete (EOL)
