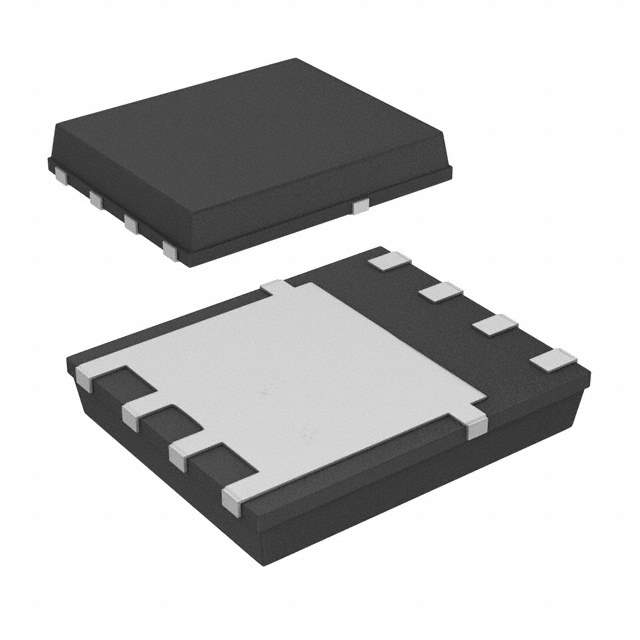

IRFH5220TRPBF Real Image
Same model may have multiple batches, images only for reference.

IRFH5220TRPBF

Part No IRFH5220TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 200V 3.8A PQFN
Datasheet
IRFH5220TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 200V
Continuous Drain Current at 25°C 3.8A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 100μA
Max Gate Charge 30nC @ 10V
Max Input Capacitance 1380pF @ 50V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3.6W (Ta), 8.3W (Tc)
Maximum Rds On at Id,Vgs 99.9 mOhm @ 5.8A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PQFN (5x6)
Dimension 8-VQFN Exposed Pad
Win Source Part Number 1046877-IRFH5220TRPBF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IRFH5220TRPBF CAD Model

Description

The IRFH5220TRPBF is an N-channel MOSFET that is designed for use in various applications and is manufactured by Infineon Technologies.

  • Input Type: Non-inverting
  • Drain-Source Breakdown Voltage: 200V
  • Maximum Power Dissipation: 3.6W (Ta) and 8.3W (Tc)
  • Maximum Continuous Drain Current: 3.8A (Ta) and 20A (Tc) @ 25°C
  • Maximum Gate Charge: 30nC @ 10V
  • Maximum Input Capacitance: 1380pF @ 50V
  • Standard Package: PQFN (5x6)
  • Status: Obsolete (EOL)
