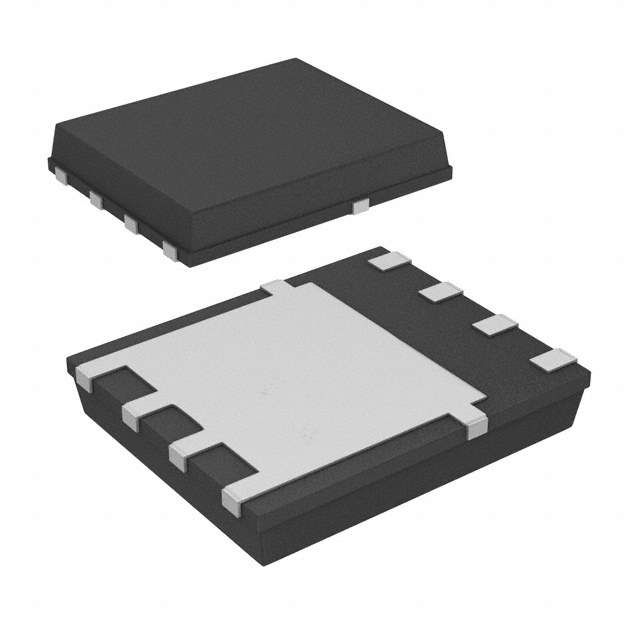

Same model may have multiple batches, images only for reference.

IRFH8321TRPBF

Name: IRFH8321TRPBF
Brand: Infineon Technologies
SKU: 462077
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IRFH8321TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	Trans MOSFET N-CH 30V 21A 8-Pin QFN EP T/R / MOSFET N CH 30V 21A PQFN5X6
Datasheet	IRFH8321TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	21A (Ta), 83A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2V @ 50μA
Max Gate Charge	59nC @ 10V
Max Input Capacitance	2600pF @ 10V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	3.4W (Ta), 54W (Tc)
Maximum Rds On at Id,Vgs	4.9 mOhm @ 20A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	PQFN (5x6)
Dimension	8-TQFN Exposed Pad
Win Source Part Number	1046898-IRFH8321TRPBF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	IRFH8321
Introduction Date	August 03, 2012
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian IRFH8321TRPBF CAD Model

Alternative Products

Description

The Infineon Technologies MOSFET 453568 is an N-channel MOSFET with a maximum power dissipation of 3.4W (Ta), 54W (Tc) and a drain-source breakdown voltage of 30V.

Power Dissipation: 3.4W (Ta), 54W (Tc)
Drain-Source Breakdown Voltage: 30V
Continuous Drain Current: 21A (Ta), 83A (Tc) @ 25°C
Gate-Source Threshold Voltage: 2V @ 50μA
Rds On: 4.9 mOhm @ 20A, 10V
Category: Discrete Semiconductor Products
Package: PQFN (5x6)
Temperature Range: -55°C to 150°C (TJ)
Supply and Demand Status: Balanced
