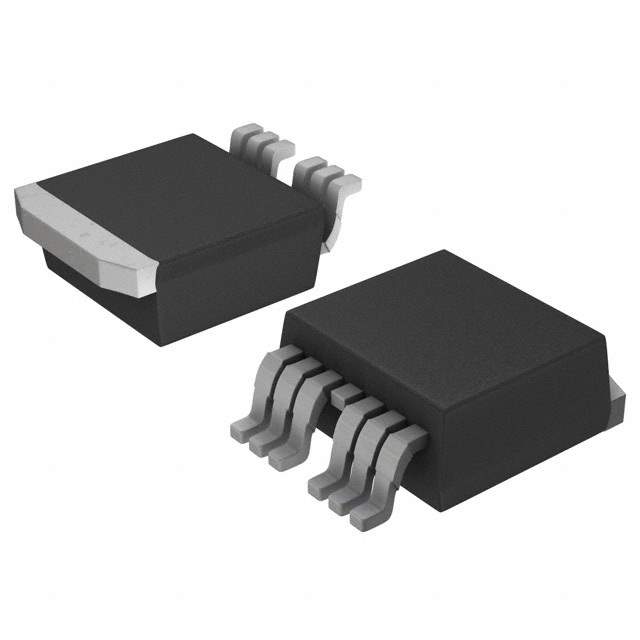

IRFS3004TRL7PP Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 240A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 240nC @ 10V
Max Input Capacitance 9130pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 380W (Tc)
Maximum Rds On at Id,Vgs 1.25 mOhm @ 195A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package D2PAK (7-Lead)
Dimension TO-263-7, D2Pak (6 Leads + Tab), TO-263CB
Win Source Part Number 1047115-IRFS3004TRL7PP
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IRFS3004TRL7PP CAD Model

Description

The Infineon Technologies IRFS3004TRL7PP is a MOSFET technology N-channel polarity power transistor.

  • Technology: MOSFET
  • Polarity: N-Channel
  • Application: Discrete Semiconductor Products
  • Mounting: Surface Mount Technology
  • Power Dissipation: 380W (Tc)
  • Drain-Source Breakdown Voltage: 40V
  • Continuous Drain Current: 240A (Tc) @ 25°C
  • Maximum Rds On: 1.25 mOhm @ 195A, 10V
  • Maximum Gate-Source Voltage: ±20V
  • Maximum Input Capacitance: 9130pF @ 25V
  • Package: D2PAK (7-Lead)
  • Status: Active
