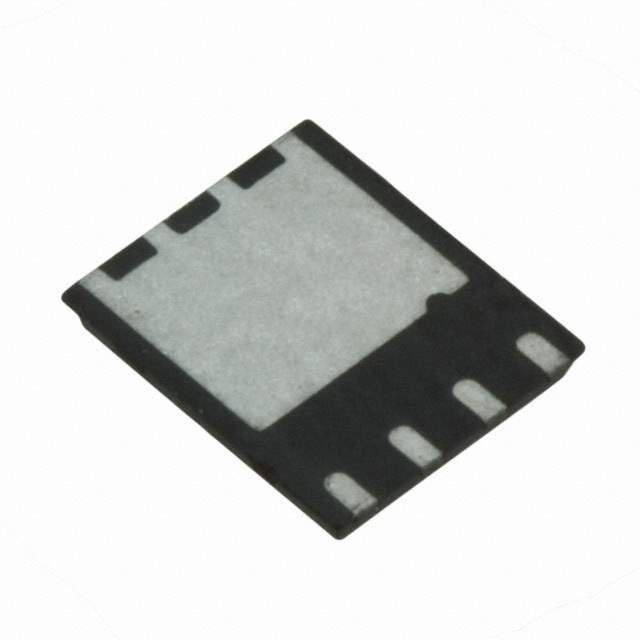

IRLH5036TRPBF Real Image
Same model may have multiple batches, images only for reference.

IRLH5036TRPBF

Part No IRLH5036TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 60V 100A 8-PQFN
Datasheet
IRLH5036TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 20A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.5V @ 150μA
Max Gate Charge 90nC @ 10V
Max Input Capacitance 5360pF @ 25V
Maximum Gate-Source Voltage ±16V
Power Dissipation (Max) 3.6W (Ta), 160W (Tc)
Maximum Rds On at Id,Vgs 4.4 mOhm @ 50A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PQFN (5x6)
Dimension 8-PowerVDFN
Win Source Part Number 1047535-IRLH5036TRPBF
Family Name IRLH5036
Introduction Date April 12, 2010
ECCN EAR99
Country of Origin China, Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IRLH5036TRPBF CAD Model

Description

The IRLH5036TRPBF is an N-Channel MOSFET electronic component manufactured by Infineon Technologies. It is designed for use in discrete semiconductor products and has a maximum power dissipation of 3.6W (Ta) and 160W (Tc).

  • Power Dissipation: 3.6W (Ta) and 160W (Tc)
  • Drain-Source Breakdown Voltage: 60V
  • Continuous Drain Current: 20A (Ta) and 100A (Tc)
  • Gate-Source Threshold Voltage: 2.5V @ 150μA
  • Gate Charge: 90nC @ 10V
  • Package: PQFN (5x6)
  • Operating Temperature: -55°C to 150°C
  • Drive Voltage: 4.5V to 10V
  • Popularity: High
