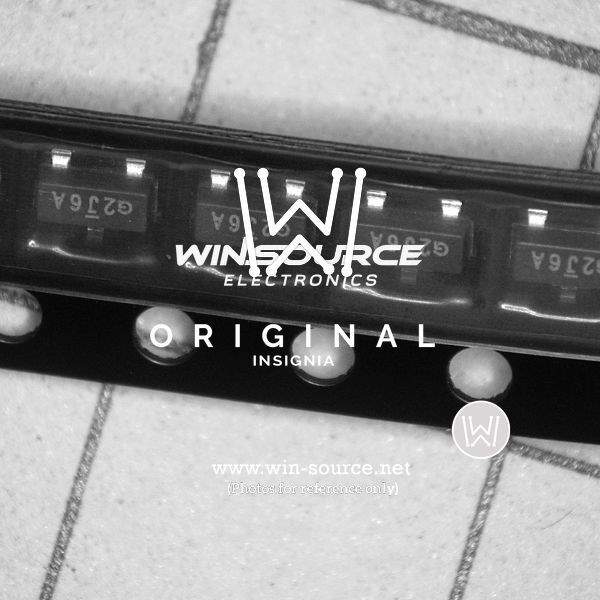

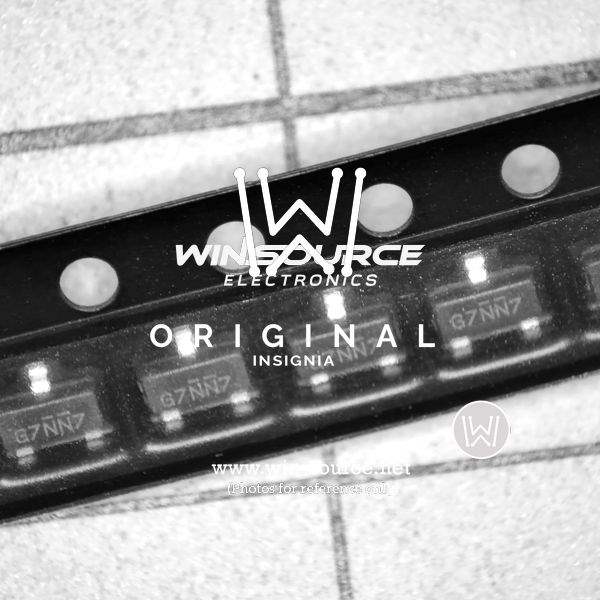

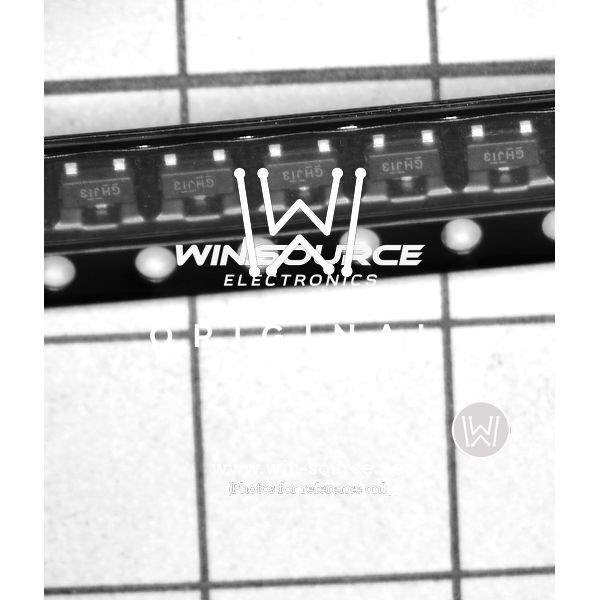

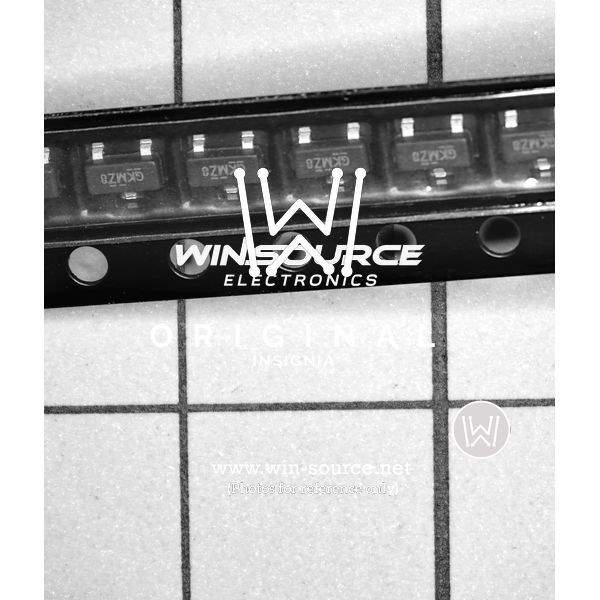

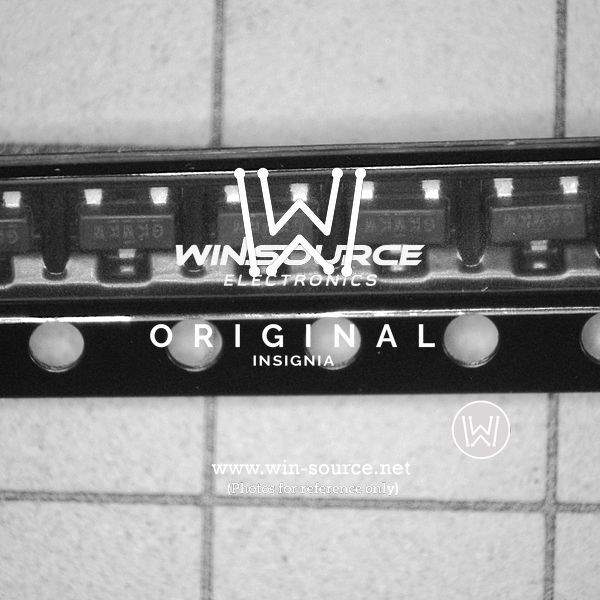

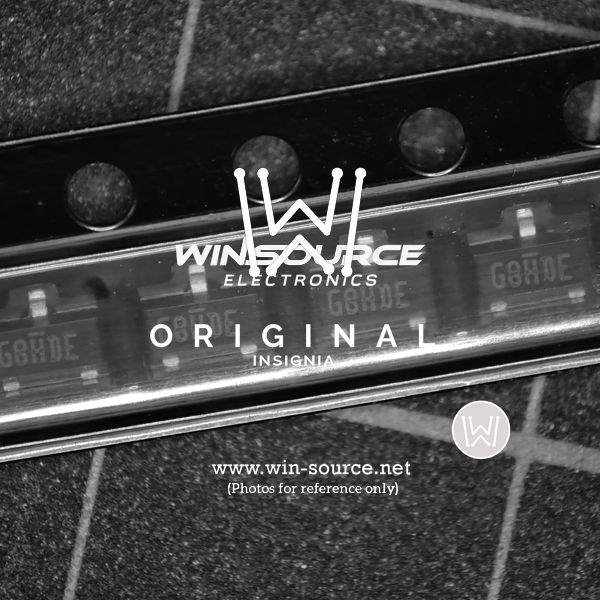

Same model may have multiple batches, images only for reference.

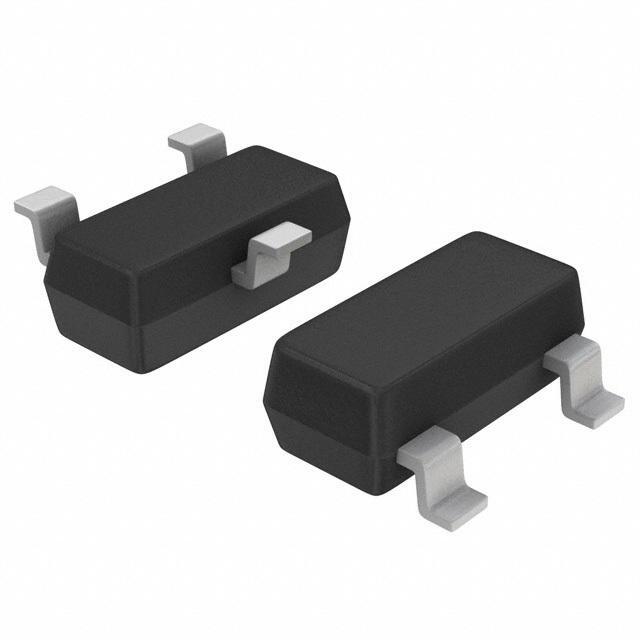

IRLML2502TRPBF

Name: IRLML2502TRPBF
Brand: Infineon Technologies
SKU: 161506
Availability: InStock
Rating: 4.93 (279 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRLML2502TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 20V 4.2A SOT-23
Datasheet	IRLML2502TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	20V
Continuous Drain Current at 25°C	4.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Gate-Source Threshold Voltage	1.2V @ 250μA
Max Gate Charge	12nC @ 5V
Max Input Capacitance	740pF @ 15V
Maximum Gate-Source Voltage	±12V
Power Dissipation (Max)	1.25W (Ta)
Maximum Rds On at Id,Vgs	45 mOhm @ 4.2A, 4.5V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	Micro3/SOT-23
Dimension	TO-236-3, SC-59, SOT-23-3
Win Source Part Number	017766-IRLML2502TRPBF
Family Name	IRLML2502
Introduction Date	April 24, 2014
ECCN	EAR99
Country of Origin	Philippines
Halogen Free	Compliant
Estimated EOL Date	2028
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Power Management, Industrial, Portable Devices, Consumer Electronics
Ultra Librarian 3D Model	Ultra Librarian IRLML2502TRPBF CAD Model

Alternative Products

Description

The Infineon Technologies IRLML2502TRPBF is a N-channel MOSFET designed for use in discrete semiconductor products.

Drain-Source Breakdown Voltage: 20V
Continuous Drain Current: 4.2A (Ta) @ 25°C
Maximum Rds On: 45 mOhm @ 4.2A, 4.5V
Maximum Gate-Source Voltage: ±12V
Maximum Gate Charge: 12nC @ 5V
Package: Micro3/SOT-23
Mounting Type: SMD (SMT)
Power Dissipation: 1.25W (Ta)
