The Infineon Technologies IRLML6244TRPBF is a N-channel MOSFET with a drain-source breakdown voltage of 20V and a continuous drain current @ 25°C of 6.3A (Ta).

• Drain-Source Breakdown Voltage: 20V
• Continuous Drain Current @ 25°C: 6.3A (Ta)
• Mounting: Surface-mounting

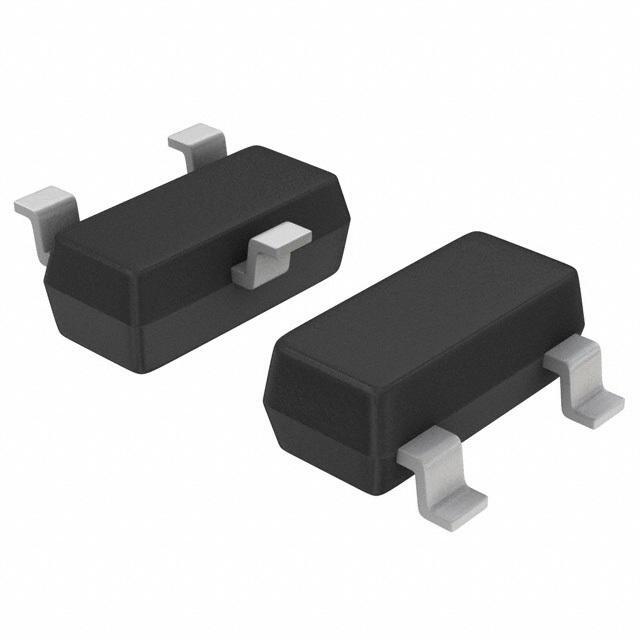

• Package: Micro3/SOT-23
• Power Dissipation: 1.3W (Ta)
• Input Type: Standard
• Gate-Source Threshold Voltage: 1.1V @ 10μA
• Maximum Gate Charge: 8.9nC @ 4.5V
• Turn-On and Turn-Off Delay Time: 22ns/100ns
• Maximum Rds On @ Id,Vgs: 21 mOhm @ 6.3A, 4.5V
• Category: Discrete semiconductor products
• Popularity: High
