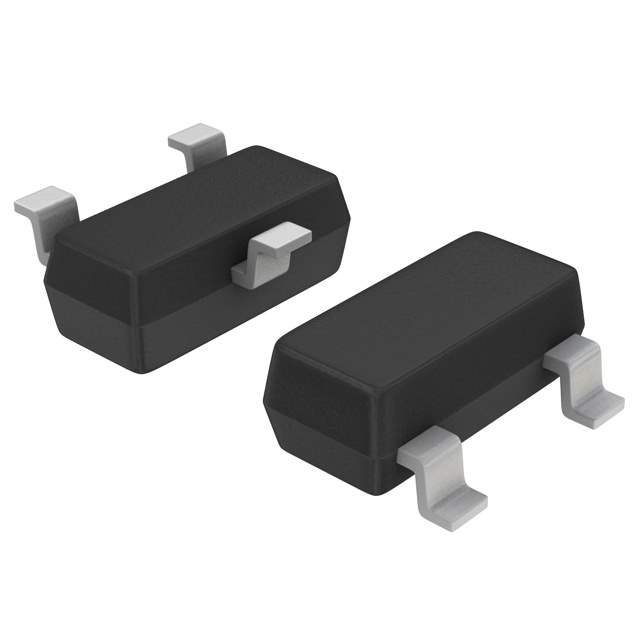

IRLML6302GTRPBF

Part No IRLML6302GTRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET P-CH 20V 0.78A 3-Pin SOT-23 T/R / MOSFET P-CH 20V 0.78A SOT-23-3
Datasheet
IRLML6302GTRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 780mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.7V, 4.5V
Gate-Source Threshold Voltage 1.5V @ 250μA
Max Gate Charge 3.6nC @ 4.5V
Max Input Capacitance 97pF @ 15V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 540mW (Ta)
Maximum Rds On at Id,Vgs 600 mOhm @ 610mA, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package Micro3/SOT-23
Dimension TO-236-3, SC-59, SOT-23-3
Win Source Part Number 1047574-IRLML6302GTRPBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name IRLML6302G
Introduction Date July 23, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian IRLML6302GTRPBF CAD Model

Description

The IRLML6302GTRPBF is a P-Channel MOSFET electronic component manufactured by Infineon Technologies.

  • Application: discrete semiconductor products
  • Power Dissipation: 540mW (Ta)
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 780mA (Ta)
  • Gate-Source Threshold Voltage: 1.5V @ 250μA
  • Gate Charge: 3.6nC @ 4.5V
  • Package: Micro3/SOT-23
  • Operating Temperature Range: -55°C to 150°C
  • Drive Voltage: 2.7V to 4.5V
  • Popularity: high
