Same model may have multiple batches, images only for reference.

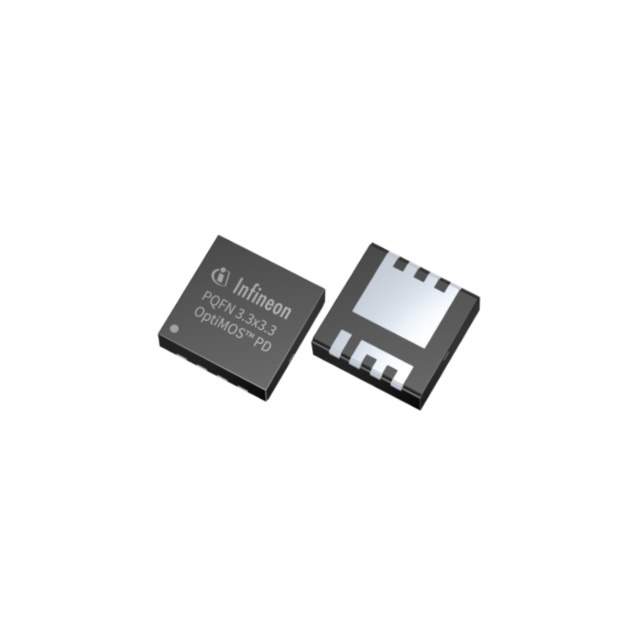

ISZ034N06LM5ATMA1 Real Image
Same model may have multiple batches, images only for reference.

ISZ034N06LM5ATMA1

Part No ISZ034N06LM5ATMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 60V 19A/112A TSDSON / N-Channel 60 V 19A (Ta), 112A (Tc) 2.5W (Ta), 83W (Tc) Surface Mount PG-TSDSON-8-26
Datasheet
ISZ034N06LM5ATMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Infineon Technologies
Series OptiMOS™ 5
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 19A (Ta) , 112A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 3.4mOhm @ 20A, 10V
Vgs(th) (Max) @ Id 2.3V @ 36µA
Gate Charge (Qg) (Max) @ Vgs 53 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 3500 pF @ 30 V
Power Dissipation (Max) 2.5W (Ta) , 83W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package PG-TSDSON-8-26
Package / Case 8-PowerTDFN
Base Product Number ISZ034N
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1338035-ISZ034N06LM5ATMA1
Ultra Librarian 3D Model Ultra Librarian ISZ034N06LM5ATMA1 CAD Model

Description

The Infineon Technologies ISZ034N06LM5ATMA1 is an N-channel MOSFET transistor, part number 1338035.

  • Series: OptiMOS™ 5
  • Packaging: Tape and Reel
  • Drain-to-Source Voltage (Vdss): 60V
  • Power Dissipation: 2.5W (Ta) and 83W (Tc)
  • Mounting Type: Surface Mount
  • Package/Case: 8-PowerTDFN
  • Voltage Supply: ±20V
  • Operating Temperature Range: -55°C to 175°C

This MOSFET transistor is suitable for use in various discrete semiconductor applications.
