Same model may have multiple batches, images only for reference.

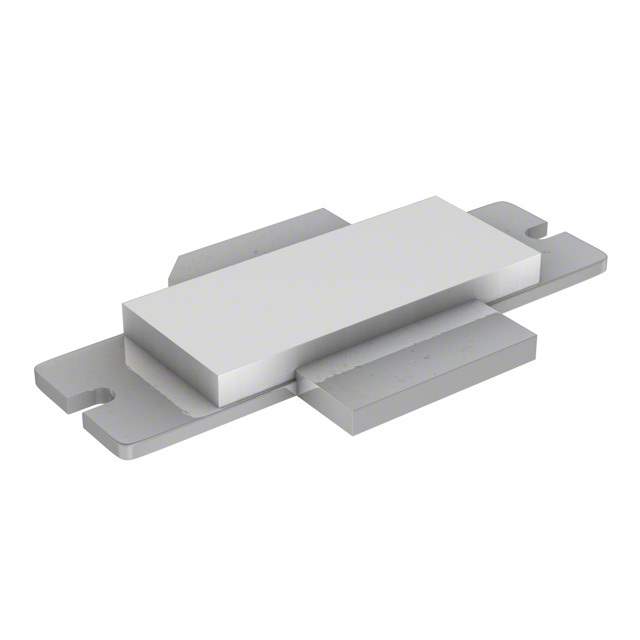

PTFA210701EV4XWSA1 Real Image
Same model may have multiple batches, images only for reference.

PTFA210701EV4XWSA1

Part No PTFA210701EV4XWSA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description IC FET RF LDMOS 70W H-36265-2 / Trans RF MOSFET N-CH 65V 3-Pin Case 36265 Tray
Datasheet
PTFA210701EV4XWSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Tray
Part Status Obsolete(EOL)
Transistor Type LDMOS
Frequency 2.14GHz
Gain 16.5dB
Voltage - Test 30V
Current Rating 10μA
Current - Test 550mA
Power - Output 18W
Voltage Rating DC 65V
Package 2-Flatpack, Fin Leads
Manufacturer Package H-36265-2
Win Source Part Number 792700-PTFA210701EV4XWSA1
Popularity Medium
Supply and Demand Status Balance
Family Name PTFA210701EV4XWSA1
Introduction Date January 01, 2000
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PTFA210701EV4XWSA1 CAD Model

Description

The Infineon Technologies PTFA210701EV4XWSA1 is an LDMOS transistor with a frequency of 2.14GHz.

  • Frequency: 2.14GHz
  • Package: 2-Flatpack, Fin Leads
  • Voltage Rating DC: 65V
  • Current Rating: 10μA
  • Gain: 16.5dB
  • Power Output: 18W
  • Current Test: 550mA
  • Status: Obsolete (EOL)
