Same model may have multiple batches, images only for reference.

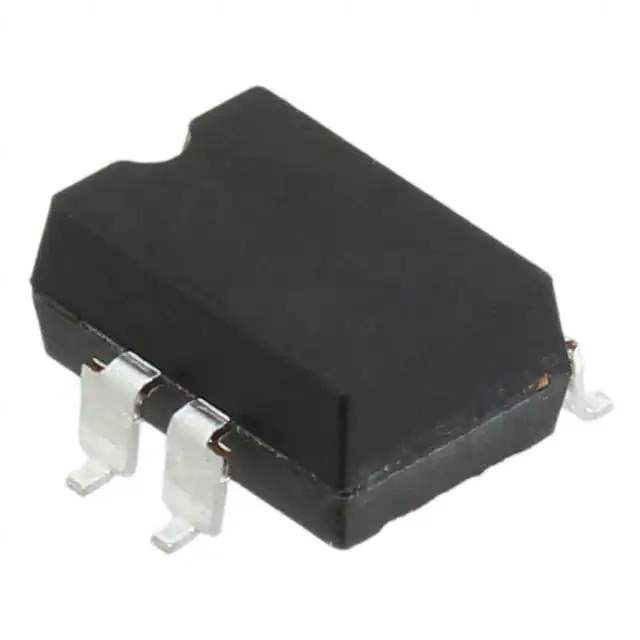

PVA3054NS Real Image
Same model may have multiple batches, images only for reference.

PVA3054NS

Part No PVA3054NS
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 50MA 0-300V
Datasheet
PVA3054NS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVA, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 300 V
Load Current 50 mA
On-State Resistance (Max) 160 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm), 4 Leads
Supplier Device Package 8-SMD
Standard Package 50 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658140-PVA3054NS
Ultra Librarian 3D Model Ultra Librarian PVA3054NS CAD Model

Description

The PVA3054NS is a solid state relay (SSR) designed for various applications.

  • Type: Single-pole single-throw normally open (SPST-NO)
  • Maximum On-State Resistance: 160 Ohms
  • Voltage Input: 1.2VDC
  • Load Current: Up to 50 mA
  • Voltage Load Range: 0V to 300V
  • Output Type: AC and DC
  • Mounting: Surface Mountable
  • Package: 8-SMD
  • Status: Obsolete
  • Manufacturer: Infineon Technologies
  • Applications: Industrial control systems and automation equipment
