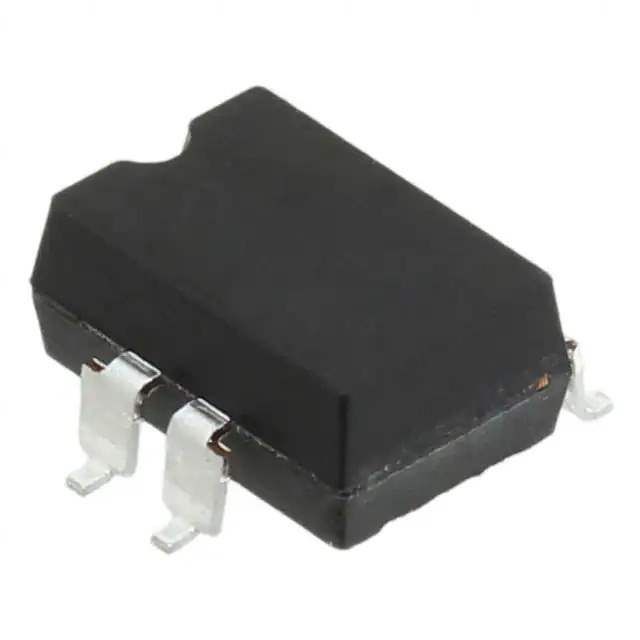

PVAZ172NS Real Image
Same model may have multiple batches, images only for reference.

PVAZ172NS

Part No PVAZ172NS
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 1A 0-60V
Datasheet
PVAZ172NS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVA, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 60 V
Load Current 1 A
On-State Resistance (Max) 500 mOhms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm), 4 Leads
Supplier Device Package 8-SMD
Standard Package 50 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658151-PVAZ172NS
Ultra Librarian 3D Model Ultra Librarian PVAZ172NS CAD Model

Description

The PVAZ172NS is a solid-state relay (SSR) designed for switching AC and DC loads.

  • Series: PVA
  • Technology: HEXFET™
  • Configuration: SPST Normally Open
  • Termination Style: Gull-Wing
  • Maximum On-State Resistance: 500 milliohms
  • Load Current: Up to 1A
  • Load Voltage Range: 0V to 60V
  • Mounting Type: Surface Mount
  • Package: 8-SMD
  • Number of Leads: 4
  • Product Status: Active
  • Standard Package Quantity: 50 pieces
