Same model may have multiple batches, images only for reference.

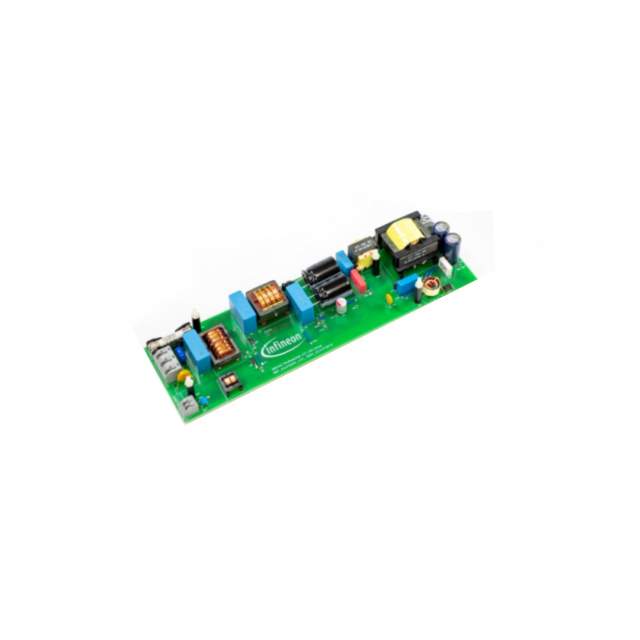

REFICL5102HVU150WTOBO1 Real Image
Same model may have multiple batches, images only for reference.

REFICL5102HVU150WTOBO1

Part No REFICL5102HVU150WTOBO1
Manufacturer Infineon Technologies
Catalog Board Mount LED Drivers
Description EVAL REF-ICL5102-U150W / ICL5102HV 1, Non-Isolated Outputs LED Driver Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr Infineon Technologies
Package Box
Current - Output / Channel 3A
Outputs and Type 1, Non-Isolated
Voltage - Output 17V ~ 48V
Voltage - Input 277 ~ 528 VAC
Supplied Contents Board(s)
Utilized IC / Part ICL5102HV
Base Product Number REFICL5102
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9520
Other Names 448-REFICL5102HVU150WTOBO1,SP005346355,SA005400288
Standard Package 1
Win Source Part Number 1013968-REFICL5102HVU150WTOBO1
Ultra Librarian 3D Model Ultra Librarian REFICL5102HVU150WTOBO1 CAD Model

Description

The Infineon Technologies 1013968-REFICL5102HVU150WTOBO1 is an evaluation board designed for LED drivers.

  • Output: Non-isolated
  • Output Voltage Range: 17V to 48V
  • Input Voltage Range: 277V to 528VAC
  • IC Used: ICL5102HV
  • Current: Up to 3A
  • Package: Box
  • Includes: Board(s)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
