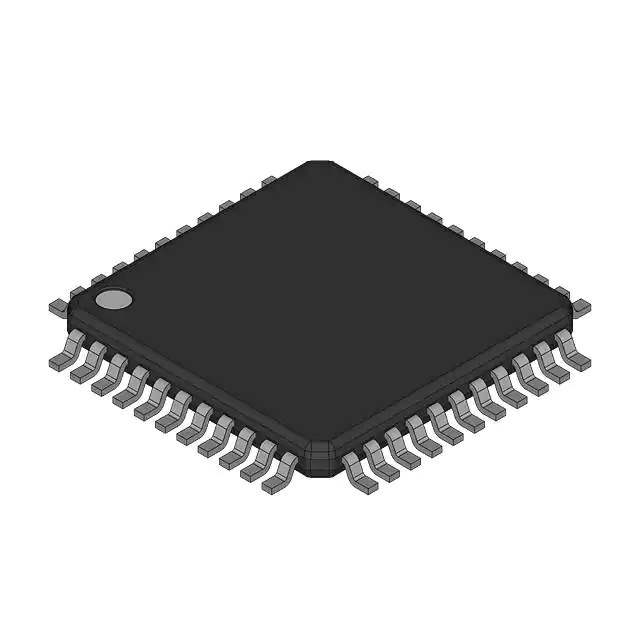

SAB-C504-2EM Real Image
Same model may have multiple batches, images only for reference.

SAB-C504-2EM

Part No SAB-C504-2EM
Manufacturer Infineon Technologies
Catalog Embedded - Microcontrollers
Description LEGACY 8-BIT MCU
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Infineon Technologies
Series C504
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor C500
Core Size 8-Bit
Speed 24MHz
Connectivity UART/USART
Peripherals POR, PWM, WDT
Number of I/O 32
Program Memory Size 16KB (16K x 8)
Program Memory Type OTP
RAM Size 512 x 8
Voltage - Supply (Vcc/Vdd) 4.25V ~ 5.5V
Data Converters A/D 8x10b SAR
Oscillator Type External, Internal
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 44-QFP
Supplier Device Package P-MQFP-44
Base Product Number SAB-C504
Standard Package 7 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 893542-SAB-C504-2EM
Ultra Librarian 3D Model Ultra Librarian SAB-C504-2EM CAD Model

Description

The 893542-SAB-C504-2EM is an embedded microcontroller from Infineon Technologies.

  • Series: C504
  • Core Processor: C500
  • Speed: 24MHz
  • Program Memory Size: 16KB (16K x 8)
  • RAM Size: 512 x 8
  • Connectivity: UART/USART
  • Peripherals: POR, PWM, and WDT
  • I/O Pins: 32
  • Package: Surface mount 44-QFP
  • Operating Temperature: 0°C to 70°C
  • Applications: Home automation, consumer electronics, and industrial control
