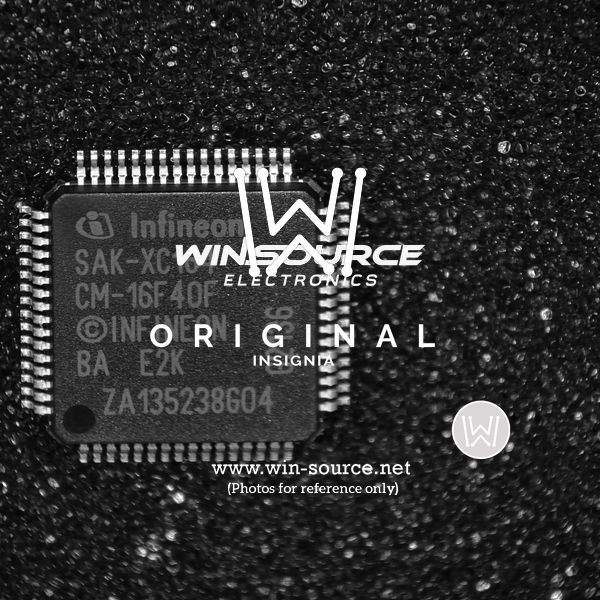

The SAK-XC164CM-16F40FBA is a 16-bit microcontroller manufactured by Infineon Technologies, belonging to the XC166 family. It's designed for embedded control applications that require a balance of processing power, peripheral integration, and cost-effectiveness. The 'XC164CM' denotes the specific microcontroller model, '16F40FBA' specifies memory configuration and clock speed, and other manufacturing details.

Applications:

• Automotive body electronics (e.g., lighting control, window lift)
• Industrial control systems
• Motor control
• Power supplies
• General-purpose embedded control

Features:

• 16-bit XC166 CPU architecture
• 40 MHz clock frequency
• On-chip flash memory and RAM
• Serial interfaces (UART, SPI, CAN)
• Analog-to-Digital Converters (ADCs)
• Timers and counters
• PWM (Pulse Width Modulation) units
• Interrupt controller
• Watchdog timer

Benefits:

• Good performance for a wide range of embedded applications.
• Integrated peripherals reduce the need for external components, simplifying design and lowering cost.
• CAN interface enables robust communication in automotive and industrial networks.
• ADCs allow for accurate measurement of analog signals.
• PWM units provide precise motor and power control.
• On-chip memory simplifies code and data storage.

Additional Details:

The SAK-XC164CM-16F40FBA typically operates at a supply voltage of 5V and is available in a surface-mount package. Detailed specifications, including memory sizes, ADC resolution, and pinout configurations, can be found in the Infineon XC166 family datasheet. It is designed to operate in a wide temperature range. Its combination of features and performance makes it a versatile choice for various embedded control applications. The robust set of peripherals and communication interfaces enhances system design flexibility. This microcontroller presents a reliable option for a variety of embedded projects.
