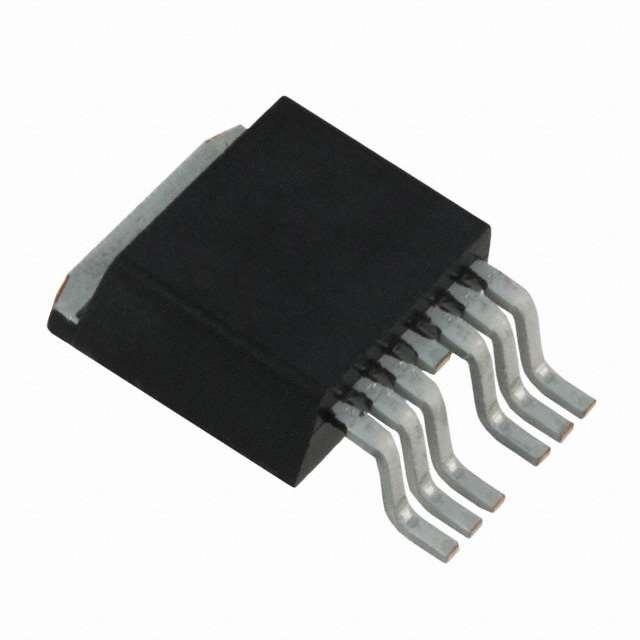

SPB160N04S2L03DTMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

SPB160N04S2L03DTMA1

Part No SPB160N04S2L03DTMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 160A D2PAK-7
Datasheet
SPB160N04S2L03DTMA1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 160A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 2V @ 250μA
Max Gate Charge 230nC @ 10V
Max Input Capacitance 8000pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 300W (Tc)
Maximum Rds On at Id,Vgs 2.7 mOhm @ 80A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TO263-7-3
Dimension TO-263-7, D2Pak (6 Leads + Tab), TO-263CB
Win Source Part Number 1101478-SPB160N04S2L03DTMA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SPB160N04S2L03DTMA1 CAD Model

Description

The Infineon Technologies SPB160N04S2L03DTMA1 is a MOSFET transistor designed for use in various electronic applications.

  • Channel: N-Channel
  • Drain-Source Breakdown Voltage: 40V
  • Continuous Drain Current: 160A @ 25°C
  • Maximum Rds On: 2.7 mOhm @ 80A, 10V
  • Gate-Source Threshold Voltage: 2V @ 250μA
  • Maximum Gate Charge: 230nC @ 10V
  • Maximum Input Capacitance: 8000pF @ 25V
  • Package: PG-TO263-7-3
  • Dimension: TO-263-7, D2Pak (6 Leads + Tab), TO-263CB
  • Supply and Demand Status: Balanced
