Same model may have multiple batches, images only for reference.

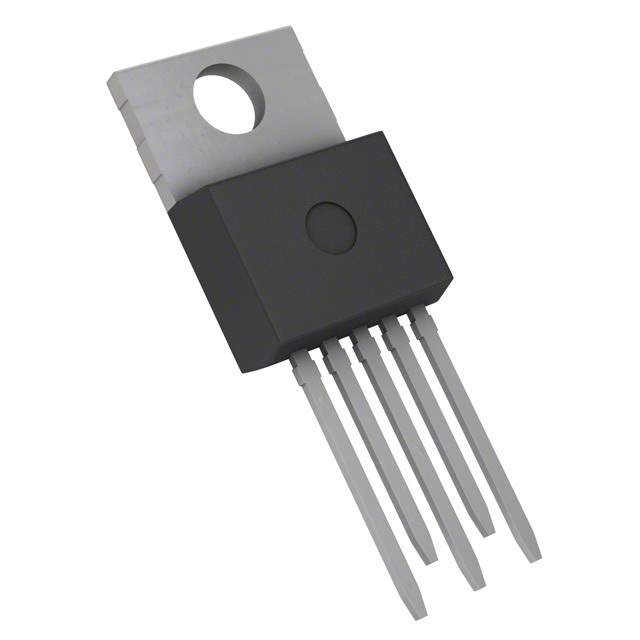

TLE4276SVAKSA1 Real Image
Same model may have multiple batches, images only for reference.

TLE4276SVAKSA1

Part No TLE4276SVAKSA1
Manufacturer Infineon Technologies
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 0.4A TO220-5 / LDO Regulator Pos 2.5V to 20V 0.4A Automotive 5-Pin(5+Tab) TO-220 Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Series Automotive, AEC-Q100
Packaging Tube
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage Input MAX 40V
Output Voltage 2.5V
Output Voltage MAX 20V
Voltage Dropout (Maximum) 0.5V @ 250mA
Output Current 400mA
Operating Supply Current 200μA ~ 25mA
PSRR 54dB (100Hz)
Control Features Inhibit
Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature Range -40°C ~ 150°C
Mounting Style Through Hole
Package TO-220-5
Manufacturer Package P-TO220-5
Win Source Part Number 796958-TLE4276SVAKSA1
Popularity Medium
Supply and Demand Status Balance
Family Name TLE 4276
Introduction Date October 09, 1998
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TLE4276SVAKSA1 CAD Model

Description

The Infineon Technologies TLE 4276 is an adjustable output type integrated circuit that operates in the -40°C to 150°C temperature range.

  • Output Voltage: 2.5V
  • Output Current: 400mA
  • Series: AEC-Q100
  • Package: TO-220-5
  • Features: Inhibit control
  • Output Configuration: Positive
  • Voltage Input Range: 40V
  • Voltage Dropout: 0.5V @ 250mA
  • Alternative parts: LT1129IT#TR, LT1129CT#TR, LT1129CT PBF, and LT1129CT#TRPBF
  • Supply and demand status: Balanced
