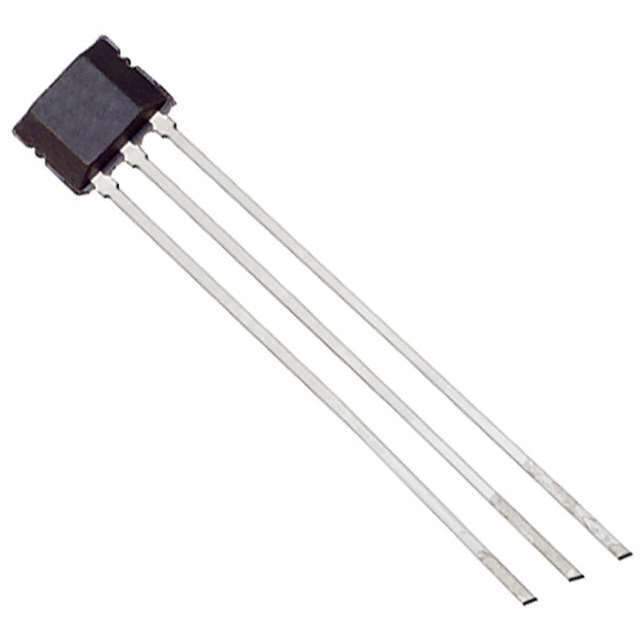

TLE4946-2L Real Image
Same model may have multiple batches, images only for reference.

TLE4946-2L

Part No TLE4946-2L
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH LATCH SSO-3
Datasheet
TLE4946-2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Packaging AMMO PACKAGE
Status Active
Purpose Latch
Technology Hall Effect
Polarization South Pole
Sensing Range 3.5mT Trip, -3.5mT Release
Testing Conditions 25°C
Supply Voltage - Operating 2.7 V to 18 V
Current - Supply (Max) 6mA
Current - Output (Max) 20mA
Output Type Open Collector
Features Temperature Compensated
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package SSO-3
Win Source Part Number 052262-TLE4946-2L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLE4946-2L CAD Model

Description

The Infineon Technologies TLE4946-2L is a temperature-compensated hall-effect sensor with an open collector output type.

  • Polarization: South Pole
  • Sensing Range: 3.5mT trip and -3.5mT release
  • Purpose: Suitable for latch purposes
  • Operating Temperature: -40°C to 150°C
  • Current Supply: 6mA
  • Maximum Output Current: 20mA
  • Alternative Parts: AH277AZ4-AG1, TLV49761KXT, TLV49762KXT, and more
