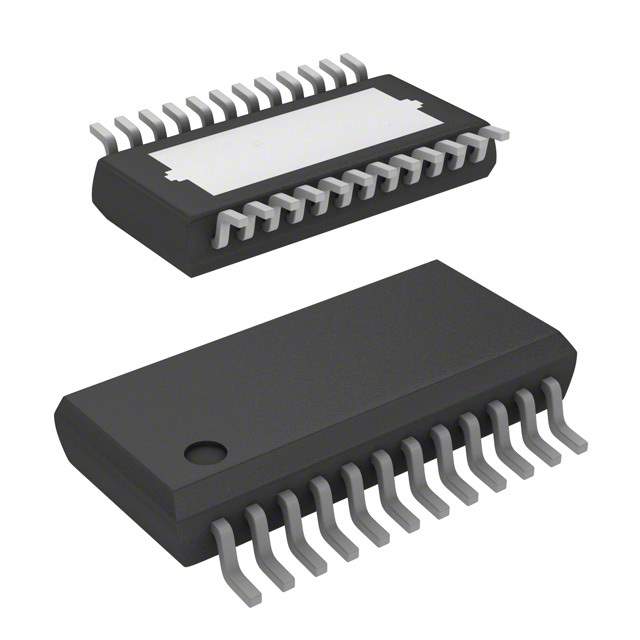

TLE7182EMXUMA1

Part No TLE7182EMXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC DRIVER N-BRIDGE 24SSOP / H-Bridge Motor Driver Automotive 24-Pin SSOP EP T/R
Datasheet
TLE7182EMXUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Packaging Reel package
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 4
Gate Type N-Channel MOSFET
Operating Supply Voltage 7 V ~ 34 V
Logic Voltage - VIL, VIH 1V, 2V
Input Type Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap) 55V
Rise / Fall Time (Typ) 250ns, 200ns
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting SMD
Package 24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Manufacturer Package PG-SSOP-24-4
Win Source Part Number 796984-TLE7182EMXUMA1
Popularity Medium
Supply and Demand Status Balance
Family Name TLE7182
Introduction Date October 06, 2010
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TLE7182EMXUMA1 CAD Model

Description

The Infineon Technologies TLE7182EMXUMA1 is a synchronous channel type half-bridge driver with four drivers.

  • Package: 24-LSSOP with exposed pad
  • Operating Supply Voltage: 7V to 34V
  • Mounting Type: Surface-mounted
  • MOSFET Type: N-channel
  • Rise/Fall Time: 250ns/200ns
  • High-Side Voltage: 55V
  • Supply and demand status: Balanced
