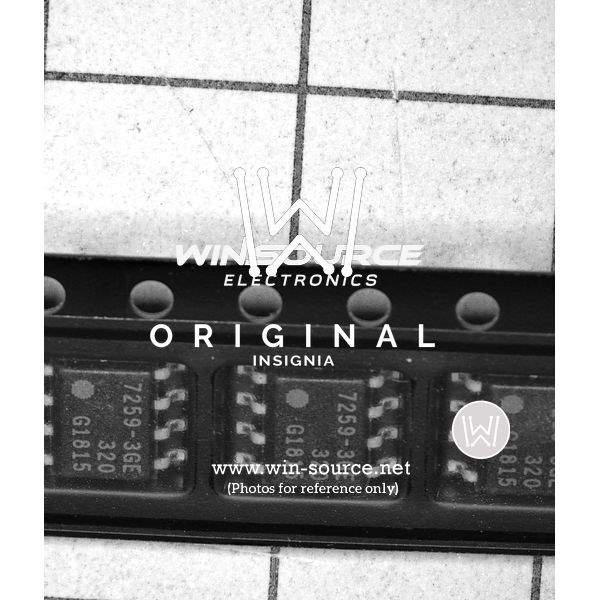

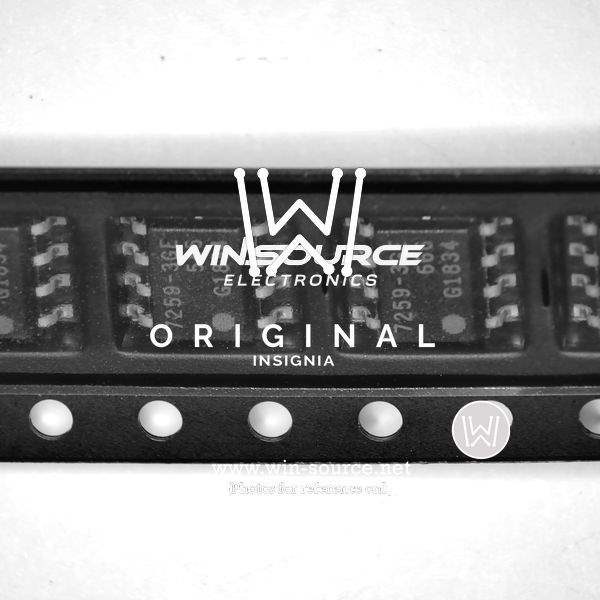

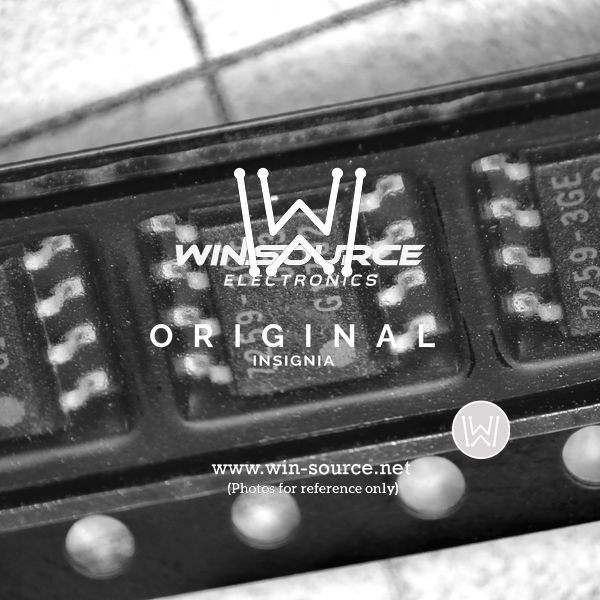

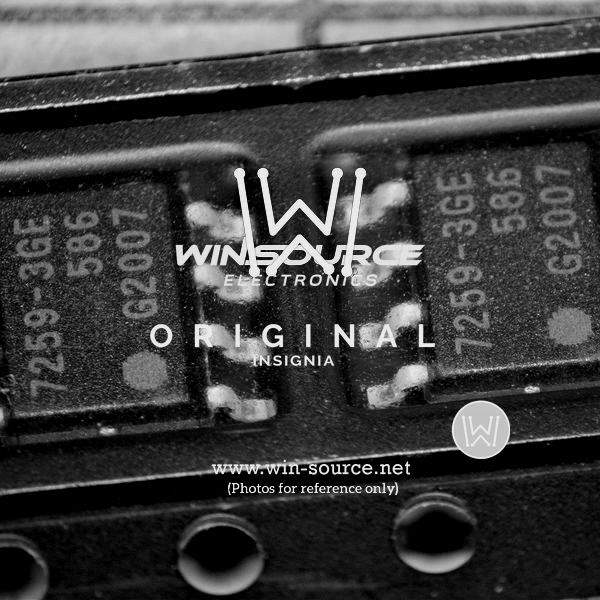

The TLE7259-3GE is a high-speed CAN (Controller Area Network) transceiver manufactured by Infineon Technologies. It facilitates communication between a microcontroller and the CAN bus, enabling data exchange in automotive and industrial applications.

Applications

• Automotive Engine Management Systems: Enables communication between the engine control unit (ECU) and other automotive systems.
• Automotive Body Electronics: Provides a communication interface for various body control modules, such as door controllers and lighting systems.
• Industrial Automation: Used in industrial control systems for communication between sensors, actuators, and controllers.
• Diagnostic Systems: Enables communication with diagnostic tools for vehicle maintenance and repair.

Features

• High-Speed CAN Transceiver: Supports data rates up to 5 Mbps.
• CAN FD (Flexible Data-Rate) Support: Compatible with the CAN FD protocol, enabling higher data rates and improved bandwidth utilization.
• Low Power Consumption: Minimizes power consumption in standby mode.
• Overtemperature Protection: Protects the transceiver from damage due to overheating.
• Short Circuit Protection: Protects the transceiver from damage due to short circuits on the CAN bus.

Benefits

• High-Speed Communication: Enables fast and reliable data exchange in demanding applications.
• Improved Bandwidth Utilization: CAN FD support allows for higher data throughput.
• Low Power Consumption: Reduces overall system power consumption.
• Robust Communication: Provides reliable communication even in harsh automotive and industrial environments.
• Enhanced System Performance: Facilitates real-time control and monitoring in complex systems.

Additional Details

The TLE7259-3GE typically operates with a supply voltage of 5V. It features a wake-up function that allows the microcontroller to be woken up from a low-power state via the CAN bus. The transceiver includes various diagnostic features for detecting and reporting errors on the CAN bus. Detailed electrical characteristics, application guidelines, and package information are available in the manufacturer's datasheet.
