Same model may have multiple batches, images only for reference.

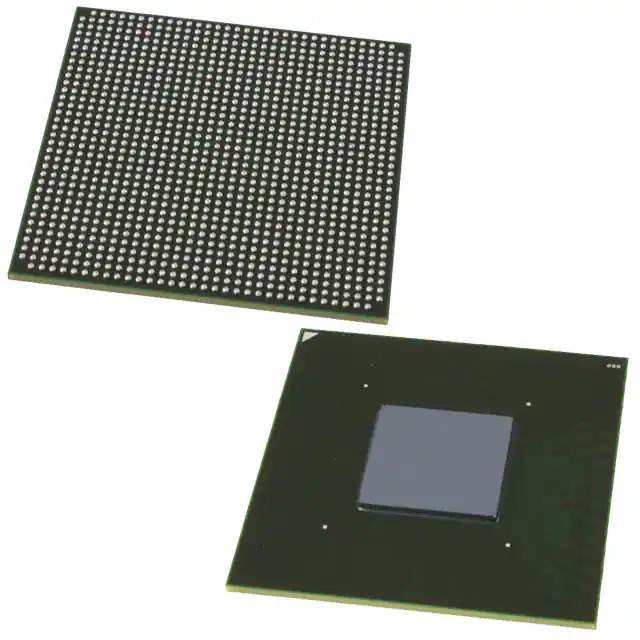

5AGXBB5D4F35I5N Real Image
Same model may have multiple batches, images only for reference.

5AGXBB5D4F35I5N

Part No 5AGXBB5D4F35I5N
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 544 I/O 1152FBGA
Datasheet
5AGXBB5D4F35I5N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Arria V GX
Package Tray
Product Status Obsolete
Programmable Not Verified
Number of LABs/CLBs 19811
Number of Logic Elements/Cells 420000
Total RAM Bits 23625728
Number of I/O 544
Voltage - Supply 1.07V ~ 1.13V
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 1152-BBGA, FCBGA Exposed Pad
Supplier Device Package 1152-FBGA (35x35)
Base Product Number 5AGXBB5
Standard Package 24 pcs
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Win Source Part Number 856693-5AGXBB5D4F35I5N
Ultra Librarian 3D Model Ultra Librarian 5AGXBB5D4F35I5N CAD Model

Description

The 856693-5AGXBB5D4F35I5N is an FPGA from Intel's Arria V GX series.

  • Series: Arria V GX
  • LABs/CLBs: 19811
  • Logic Elements/Cells: 420000
  • I/O pins: 544
  • Total RAM capacity: 23625728 bits
  • Voltage Supply: 1.07V to 1.13V
  • Mounting: Surface Mountable
  • Package: 1152-BBGA
  • Exposed Pad: Yes
  • Temperature Range: -40°C to 100°C
  • Status: Obsolete
