Same model may have multiple batches, images only for reference.

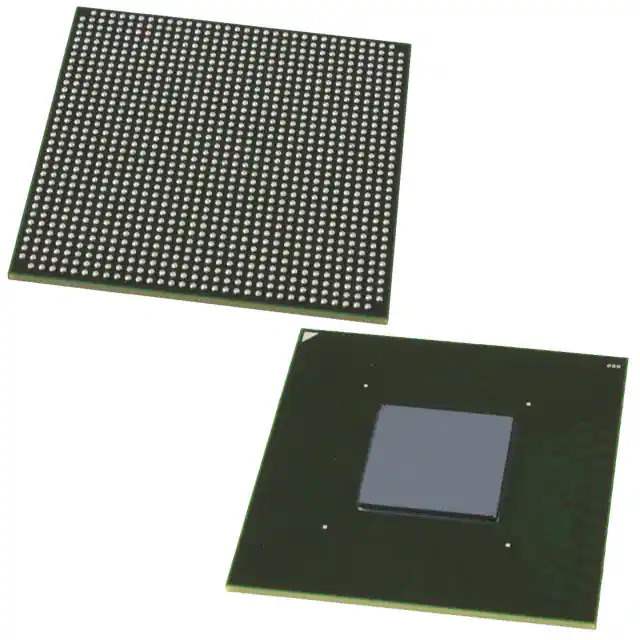

5AGXFB1H4F35C5N Real Image
Same model may have multiple batches, images only for reference.

5AGXFB1H4F35C5N

Part No 5AGXFB1H4F35C5N
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 544 I/O 1152FBGA
Datasheet
5AGXFB1H4F35C5N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Arria V GX
Package Tray
Product Status Obsolete
Programmable Not Verified
Number of LABs/CLBs 14151
Number of Logic Elements/Cells 300000
Total RAM Bits 17358848
Number of I/O 544
Voltage - Supply 1.07V ~ 1.13V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 1152-BBGA, FCBGA Exposed Pad
Supplier Device Package 1152-FBGA (35x35)
Base Product Number 5AGXFB1
Standard Package 24 pcs
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Win Source Part Number 856695-5AGXFB1H4F35C5N
Ultra Librarian 3D Model Ultra Librarian 5AGXFB1H4F35C5N CAD Model

Description

The Arria V GX series FPGA, with the part number 856695-5AGXFB1H4F35C5N, is an embedded integrated circuit designed for field programmable gate array applications.

  • Series: Arria V GX
  • LABs/CLBs: 14151
  • Logic Elements/Cells: 300000
  • I/O pins: 544
  • RAM bits: 17358848
  • Voltage Range: 1.07V to 1.13V
  • Mounting: Surface Mountable
  • Package Quantity: 24 pieces
  • Packaging: Tray
  • Package/Case Size: 1152-BBGA
  • Exposed Pad: Yes
  • Supplier Device Package: 1152-FBGA (35x35)
  • Operating Temperature: 0°C to 85°C
  • Manufacturer: Intel
  • Status: Obsolete
