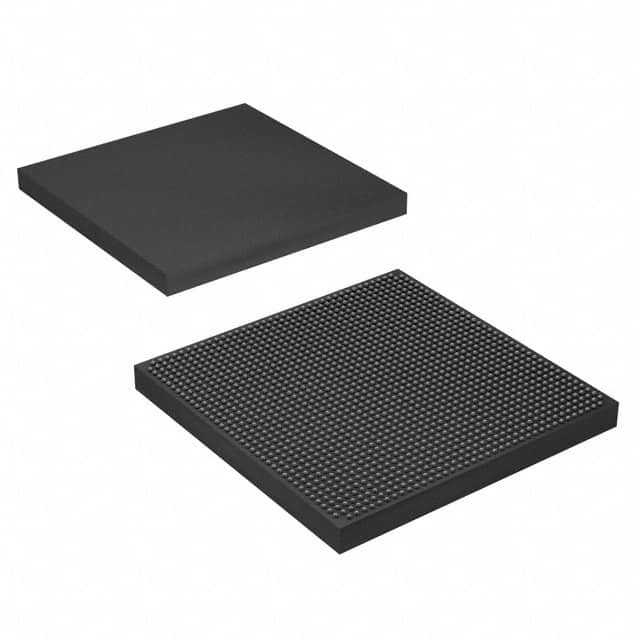

Same model may have multiple batches, images only for reference.
5SGXMA3K2F40I3N
Same model may have multiple batches, images only for reference.

5SGXMA3K2F40I3N

Part No 5SGXMA3K2F40I3N
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 600 I/O 1517FBGA
Datasheet
5SGXMA3K2F40I3N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® V GX
Package Tray
Product Status Obsolete
Programmable Not Verified
Number of LABs/CLBs 128300
Number of Logic Elements/Cells 340000
Total RAM Bits 19456000
Number of I/O 600
Voltage - Supply 0.82V ~ 0.88V
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 1517-BBGA, FCBGA
Supplier Device Package 1517-FBGA (40x40)
Base Product Number 5SGXMA3
Standard Package 21 pcs
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Win Source Part Number 856792-5SGXMA3K2F40I3N
Ultra Librarian 3D Model Ultra Librarian 5SGXMA3K2F40I3N CAD Model

Description

The 5SGXMA3K2F40I3N is a Field Programmable Gate Array (FPGA) from Intel's Stratix V GX series manufactured by Intel.

  • I/O Pins: 600
  • LABs/CLBs: 128,300
  • Logic Elements/Cells: 340,000
  • RAM Capacity: 19,456,000 bits
  • Voltage Supply Range: 0.82V to 0.88V
  • Mounting Type: Surface Mountable
  • Package: 1517-BBGA
  • Status: Active (Obsolete)
