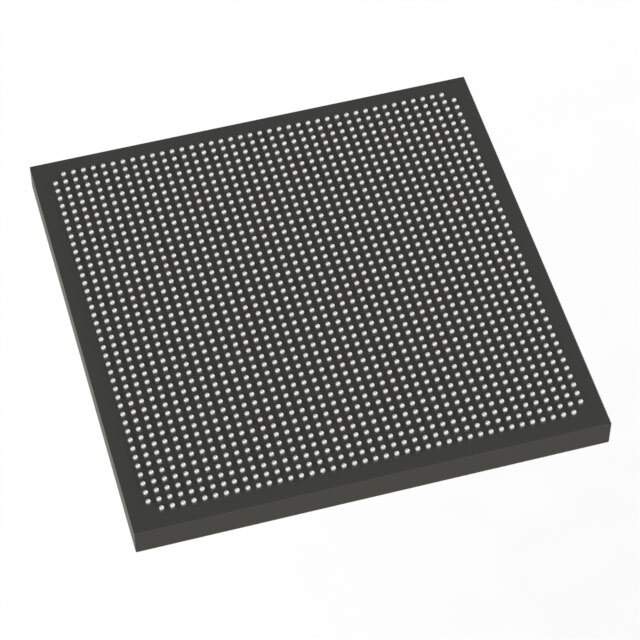

5SGXMBBR2H43I2N Real Image
Same model may have multiple batches, images only for reference.

5SGXMBBR2H43I2N

Part No 5SGXMBBR2H43I2N
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 600 I/O 1760HBGA  /  series Field Programmable Gate Array (FPGA) IC 600 53248000 952000 1760-BBGA, FCBGA
Datasheet
5SGXMBBR2H43I2N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® V GX
Package Tray
Product Status Obsolete
Number of LABs/CLBs 359200
Number of Logic Elements/Cells 952000
Total RAM Bits 53248000
Number of I/O 600
Voltage - Supply 0.87V ~ 0.93V
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 1760-BBGA, FCBGA
Supplier Device Package 1760-HBGA (45x45)
Base Product Number 5SGXMBB
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Other Names 970838
Standard Package 12
Win Source Part Number 1025872-5SGXMBBR2H43I2N
Ultra Librarian 3D Model Ultra Librarian 5SGXMBBR2H43I2N CAD Model

Description

The Stratix® V GX is an integrated circuit designed for embedded - FPGAs (Field Programmable Gate Array).

  • Package: Tray
  • Standard Package: 12 units
  • Mounting: SMD (SMT)
  • I/O: 600
  • LABs/CLBs: 359200
  • Logic Elements/Cells: 952000
  • Total RAM Bits: 53248000
  • Voltage Supply: 0.87V ~ 0.93V
  • Package/Case: 1760-BBGA, FCBGA
  • Supplier Device Package: 1760-HBGA (45x45)
  • Operating Temperature: -40°C ~ 100°C (TJ)
  • MSL Level: 3 (168 Hours)
  • HTSUS: 8542.39.0001
  • Manufacturer: Intel
  • Other Names: 970838
  • Base Product Number: 5SGXMBB
  • Product Status: Obsolete
