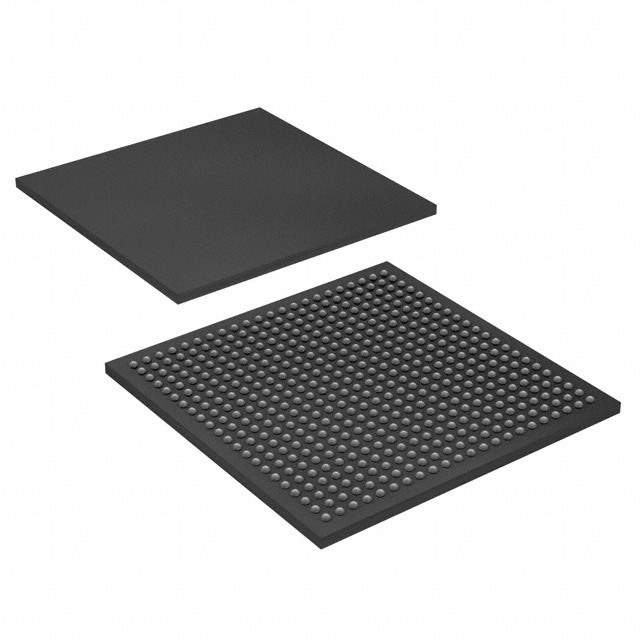

The EP3C80U484C8N is a member of the Cyclone III FPGA family from Intel (formerly Altera). These FPGAs are characterized by their low cost and low power consumption, making them suitable for a variety of embedded applications. The 'EP3C80' indicates a device with approximately 80,000 logic elements. 'U484' designates a 484-pin Ultra FineLine BGA (UBGA) package. 'C8N' denotes the temperature and speed grade, typically indicating an industrial temperature range and lead-free compliance.

Applications

• Industrial control systems
• Medical imaging equipment
• Automotive electronics
• Broadcast video systems
• Test and measurement instruments

Features

• 79,040 logic elements (LEs): Provides a large amount of programmable logic for complex designs.
• 484-pin UBGA package: Offers a compact form factor for space-constrained applications.
• 4,032 Kbits of embedded memory: Allows for on-chip data storage and processing.
• 288 embedded multipliers: Enables high-performance digital signal processing (DSP) capabilities.
• Four phase-locked loops (PLLs): Provides flexible clock generation and management.
• High-speed I/O interfaces: Supports various communication protocols for interfacing with external devices.

Benefits

• High performance: Offers sufficient processing power for demanding applications.
• Low power consumption: Minimizes power dissipation and extends battery life in portable devices.
• Cost-effectiveness: Provides a balance of features and price for budget-conscious designs.
• Design flexibility: Allows for custom hardware implementation of complex algorithms.
• Fast time-to-market: Enables rapid prototyping and development of new products.

Additional Details

The EP3C80U484C8N FPGA operates at a core voltage of 1.2V, contributing to its low power consumption. The device includes a configurable interconnect architecture that allows for flexible routing of signals between logic elements. The embedded memory blocks can be configured as RAM, ROM, or FIFO. The multipliers provide dedicated hardware for performing multiplication, accumulation, and other DSP operations. The PLLs can generate multiple clock frequencies from a single input clock. The I/O interfaces support various standards, including LVDS, HSTL, and SSTL. Development of designs for the EP3C80U484C8N is typically done using Intel's Quartus Prime software. This software provides a comprehensive suite of tools for design entry, synthesis, place and route, and simulation. It also includes a library of pre-built IP cores that can be used to accelerate development.
