Same model may have multiple batches, images only for reference.

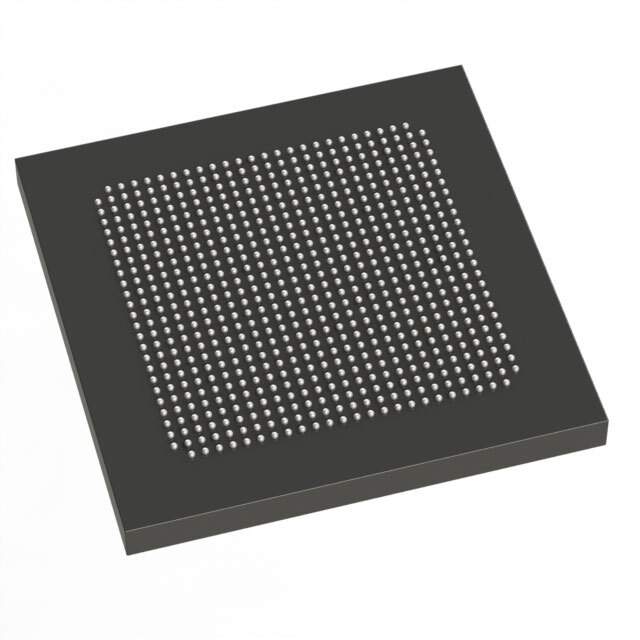

EP4SGX230DF29C3N Real Image
Same model may have multiple batches, images only for reference.

EP4SGX230DF29C3N

Part No EP4SGX230DF29C3N
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 372 I/O 780FBGA
Datasheet
EP4SGX230DF29C3N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features series Field Programmable Gate Array (FPGA) IC 372 17544192 228000 780-BBGA, FCBGA
Manufacturer Intel
Series Stratix® IV GX
Package Tray
Part Status Obsolete
Number of I/O 372
Operating Temperature Range 0°C ~ 85°C (TJ)
Mounting Surface Mount
Package 780-BBGA, FCBGA
Case / Package 780-FBGA (29x29)
Family Name EP4SGX230
MSL Level 3 (168 Hours)
ECCN 3A001A7A
HTSUS 8542.39.0001
Quantity per package 36
Popularity High
Supply and Demand Status Balance
Win Source Part Number 918348-EP4SGX230DF29C3N
Ultra Librarian 3D Model Ultra Librarian EP4SGX230DF29C3N CAD Model

Description

The Intel EP4SGX230DF29C3N is a series Field Programmable Gate Array (FPGA) IC that is part of the Stratix IV GX series.

  • Package: 780-BBGA, FCBGA
  • Mounting Type: Surface Mount
  • Operating Temperature: 0°C to 85°C (TJ)
  • Input/Output (I/O): 372
  • Status: Obsolete
  • Family Name: EP4SGX230
  • Category: Integrated Circuits (ICs)
  • Demand: High
  • Package: Tray
  • Quantity per Package: 36
  • ECCN: 3A001A7A
  • MSL Level: 3 (168 hours)
  • HTSUS: 8542.39.0001
  • Other Part Numbers: 544-1872, 970070, and EP2S130F780C4N-ND
