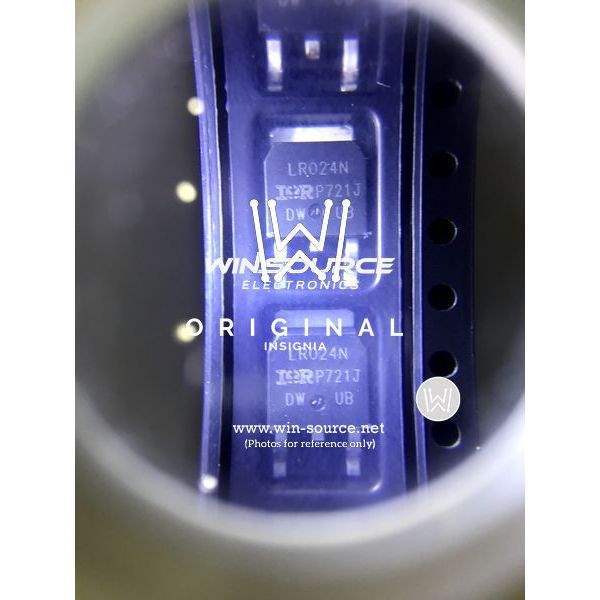

The AUIRLR024NTR is a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) manufactured by International Rectifier (now Infineon Technologies). This transistor is designed for efficient power switching in various applications.

Applications

• DC-DC Converters
• Power Management Circuits
• Motor Control
• Lighting Control
• Switching Power Supplies

Features

• Logic-Level Gate Drive
• Low On-Resistance (RDS(on))
• Fast Switching Speed
• Surface Mount Package
• Lead-Free

Benefits

• Simplified Drive Circuitry
• Reduced Power Loss
• Efficient Switching
• Compact Design
• Environmentally Friendly

Technical Specifications

The AUIRLR024NTR features a drain-source voltage (VDS) of 55V and a continuous drain current (ID) of 16A. The on-resistance (RDS(on)) is typically low, minimizing conduction losses and improving efficiency. The gate threshold voltage (VGS(th)) is designed for logic-level compatibility, allowing easy interfacing with microcontrollers and other digital circuits. The device is packaged in a surface-mount configuration, facilitating automated assembly and compact designs. It is also lead-free, complying with environmental regulations.

This MOSFET is designed for applications where efficiency and ease of use are important. The logic-level gate drive simplifies the design of the gate drive circuitry, reducing the number of components required and lowering the overall cost. The low on-resistance minimizes power dissipation, leading to improved energy efficiency and reduced heat generation. The fast switching speed allows for high-frequency operation, further improving efficiency. The surface-mount package enables compact designs and automated assembly, making it suitable for high-volume production.

Overall, the AUIRLR024NTR is a versatile and efficient MOSFET suitable for a wide range of power switching applications. Its combination of low on-resistance, logic-level gate drive, and fast switching speed makes it an excellent choice for modern power management systems.
