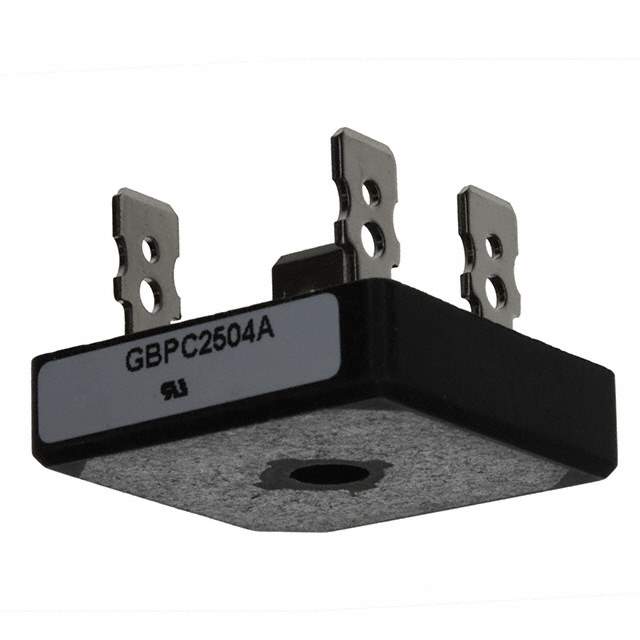

The GBPC2504A is a 25A Glass Passivated Bridge Rectifier manufactured by International Rectifier (now Infineon Technologies). This component is designed to convert alternating current (AC) to direct current (DC) and is commonly used in power supplies, adapters, and various electronic devices.

Applications:

• Power Supplies
• AC to DC rectification in electronic equipment
• Adapters
• Industrial Automation
• Lighting circuits

Features:

• High surge current capability
• Glass passivated chip junction
• High isolation voltage (typically 1500V AC)
• Low forward voltage drop
• High temperature soldering guaranteed
• RoHS compliant

Benefits:

• Reliable AC to DC conversion
• Improved efficiency in power supplies due to low forward voltage drop
• Robust performance in high surge current applications
• Enhanced safety with high isolation voltage
• Meets environmental standards (RoHS)
• Long operational lifespan

Technical Specifications:

The GBPC2504A features a repetitive peak reverse voltage of 400V. It has a forward current rating of 25A. Its maximum surge current is 300A. The operating junction temperature ranges from -55°C to +150°C. The forward voltage drop is typically 1.0V at 12.5A. The package type is GBPC.

This bridge rectifier is designed for applications requiring reliable and efficient AC to DC conversion. Its robust construction and high surge current capability make it suitable for demanding environments.
