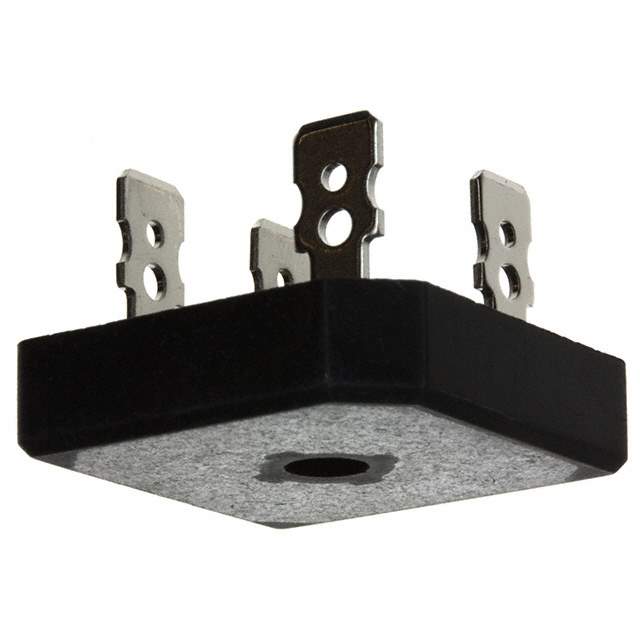

The GBPC3504A is a 35A Glass Passivated Bridge Rectifier manufactured by International Rectifier (now Infineon Technologies). This component is designed to convert alternating current (AC) to direct current (DC) and is commonly used in power supplies, adapters, and various electronic devices.

Applications:

• Power Supplies
• AC to DC rectification in electronic equipment
• Adapters
• Industrial Automation
• Battery Chargers

Features:

• High surge current capability
• Glass passivated chip junction
• High isolation voltage (typically 1500V AC)
• Low forward voltage drop
• High thermal reliability
• RoHS compliant

Benefits:

• Reliable AC to DC conversion
• Efficient power conversion with low forward voltage drop
• Withstands high surge currents
• Provides safety through high isolation voltage
• Meets environmental compliance standards
• Durable construction for long-term use

Technical Specifications:

The GBPC3504A has a repetitive peak reverse voltage of 400V. It is rated for a forward current of 35A. The peak surge current is 400A. The operating junction temperature range is -55°C to +150°C. The forward voltage drop is approximately 1.0V at 17.5A. This device is available in a GBPC package.

This bridge rectifier is an excellent choice for applications needing a robust and efficient solution for converting AC to DC power. Its high current capacity and surge handling capabilities make it suitable for demanding applications.
