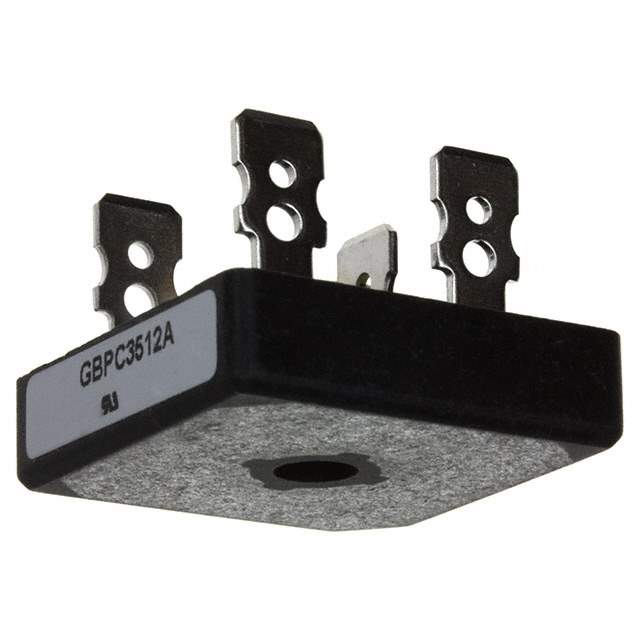

The GBPC3512A is a single-phase bridge rectifier from International Rectifier (now Infineon Technologies). It's designed to convert alternating current (AC) to direct current (DC). This rectifier is commonly used in power supplies, battery chargers, and other applications requiring DC voltage from an AC source. It offers a robust and reliable solution for converting AC power to DC power.

Applications:

• Power supplies: Used as the primary rectifier in AC-DC power supplies for various electronic devices.
• Battery chargers: Converts AC power to DC for charging batteries in various applications.
• Industrial automation equipment: Provides DC power for control circuits and other components.
• Home appliances: Used in appliances such as washing machines, refrigerators, and microwave ovens to provide DC power for electronic components.
• LED lighting: Converts AC voltage to DC voltage needed to drive LED lights.

Features:

• High surge current capability: Can withstand high current surges, providing protection against transient events.
• High forward surge current: Provides reliable operation during sudden current spikes.
• Low forward voltage drop: Minimizes power loss and improves efficiency.
• High reliability: Designed for long-term operation in demanding environments.
• Easy to mount: Typically comes in a through-hole package for easy installation.

Benefits:

• Efficient power conversion: Minimizes power loss during AC-DC conversion.
• Improved circuit reliability: Provides protection against voltage surges and transient events.
• Reduced component count: Integrates four diodes into a single package, simplifying circuit design.
• Simplified assembly: Easy to mount and connect in various circuit configurations.
• Cost-effective solution: Provides a reliable and efficient AC-DC conversion solution at a reasonable cost.

Additional Details:

The GBPC3512A has a maximum repetitive peak reverse voltage (VRRM) of 1200V and a maximum average forward rectified current (IF(AV)) of 35A. The operating temperature range is typically -55°C to +150°C. The package is a standard GBPC package. Refer to the International Rectifier datasheet for detailed specifications, including forward voltage drop, reverse leakage current, and thermal resistance. The datasheet provides information on recommended mounting techniques and thermal management considerations to ensure reliable operation.
