The IRC540 is an N-channel power MOSFET from International Rectifier. It's designed for high-speed switching applications and is commonly used in power supplies, motor control, and other applications requiring efficient and reliable switching. Its robust design and high avalanche energy rating make it suitable for demanding environments.

Applications:

• Switching Power Supplies: Used in DC-DC converters and AC-DC power supplies.
• Motor Control: Employed in controlling the speed and direction of DC motors.
• Uninterruptible Power Supplies (UPS): Found in UPS systems for switching between battery and AC power.
• High-Frequency Inverters: Used in inverters for converting DC to AC power.
• Solid-State Relays: Used as a switching element in solid-state relays.

Features:

• N-Channel MOSFET: Offers efficient switching characteristics.
• High Avalanche Energy: Provides robustness against voltage spikes.
• Low On-Resistance (RDS(on)): Minimizes power loss during conduction.
• Fast Switching Speed: Enables high-frequency operation.
• Through-Hole Package (TO-220AB): Easy to mount and heatsink.

Benefits:

• Improved Efficiency: Low RDS(on) reduces power dissipation, improving overall system efficiency.
• Enhanced Reliability: High avalanche energy rating ensures reliable operation in harsh conditions.
• Simplified Design: Fast switching speed allows for smaller and less expensive components.
• Easy Mounting: TO-220AB package simplifies heatsinking and mounting.
• Reduced Heat Generation: Lower power dissipation results in less heat generation.

Additional Details:

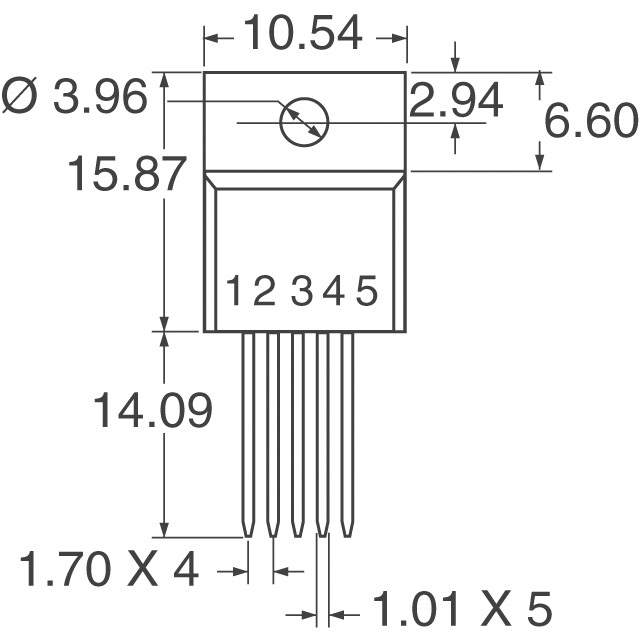

The IRC540 typically features a drain-source voltage (Vds) rating of around 100V and a continuous drain current (Id) rating of approximately 33A. The gate threshold voltage (Vgs(th)) is typically between 2V and 4V. The TO-220AB package is a standard through-hole package that allows for easy mounting to a heatsink to dissipate heat. When using the IRC540, it's important to consider the gate drive requirements and ensure proper gate protection to prevent damage. Review the datasheet for specific electrical characteristics, thermal resistance, and safe operating area. Proper heatsinking is crucial to maintaining the device within its operating temperature range and ensuring long-term reliability.
