The IRFR540Z is a Power MOSFET from International Rectifier (now Infineon Technologies), designed for high-current and fast-switching applications. It belongs to a family of MOSFETs known for their robustness and efficiency in power management circuits.

Applications:

• High-frequency switching power supplies
• DC-DC converters
• Motor control
• Uninterruptible power supplies (UPS)
• Load Switching

Features:

• Low on-resistance (RDS(on))
• Dynamic dV/dt rating
• 175°C operating temperature
• Fast switching
• Avalanche energy rated
• Lead-Free

Benefits:

• Improved efficiency in power conversion
• Reduced power losses and heat generation
• Enhanced system reliability
• Simplified thermal management
• Higher power density
• Suitability for harsh operating environments

Additional Details:

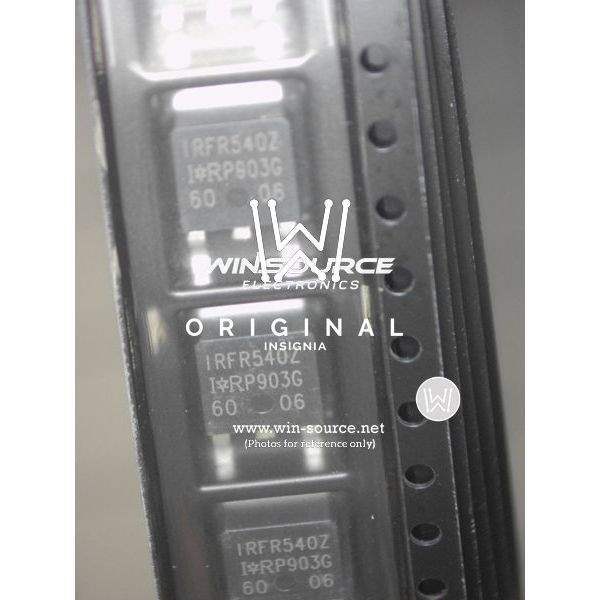

The IRFR540Z features a drain-source voltage (Vds) of 100V and a continuous drain current (Id) of 29A. Its low on-resistance (RDS(on)) minimizes conduction losses, contributing to higher efficiency. The device is available in a DPAK (TO-252) package, which provides good thermal performance for heat dissipation. The fast switching speed reduces switching losses, further enhancing efficiency in high-frequency applications. Its dynamic dV/dt rating ensures robustness against voltage transients. This MOSFET is designed to handle avalanche conditions, providing protection against voltage spikes. Compliant with RoHS standards, it is environmentally friendly. The IRFR540Z's optimized gate charge ensures efficient switching performance.
