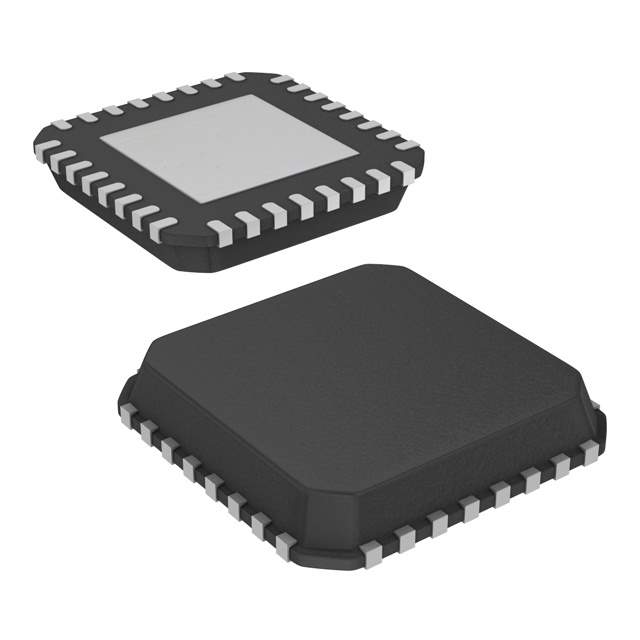

ZL2004ALNNT-01 Real Image
Same model may have multiple batches, images only for reference.

ZL2004ALNNT-01

Part No ZL2004ALNNT-01
Manufacturer Intersil
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK PMBUS 32QFN
Datasheet
ZL2004ALNNT-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Obsolete(EOL)
Output Type PWM Signal
Purpose Step-Down
Topology Buck
Number of Outputs 1
Output Phases 1
Supply Voltage - Operating 8 V to 10 V
Frequency - Switching 400kHz
Clock Sync Yes
Serial Interfaces I2C, PMBus, SMBus
Control Features Current Limit, Enable, Power Good, Soft Start, Tracking
Temperature Range - Operating 0°C to 65°C (TA)
Case / Package 32-QFN (5x5)
Win Source Part Number 1120002-ZL2004ALNNT-01
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ZL2004ALNNT-01 CAD Model

Description

The ZL2004ALNNT-01 is a step-down DC-DC converter with a PWM output signal manufactured by Intersil.

  • Output Signal: PWM
  • Switching Frequency: 400kHz
  • Supply Voltage Range: 8V to 10V
  • Control Features: Current limit, enable, power good, soft start, and tracking
  • Output Phase: Single
  • Serial Interfaces: I2C, PMBus, and SMBus
  • Mounting: Surface-mount technology (SMT)
  • Package: 32-QFN (5x5)
  • Suitable for: Applications that require efficient voltage regulation and power management
