Same model may have multiple batches, images only for reference.

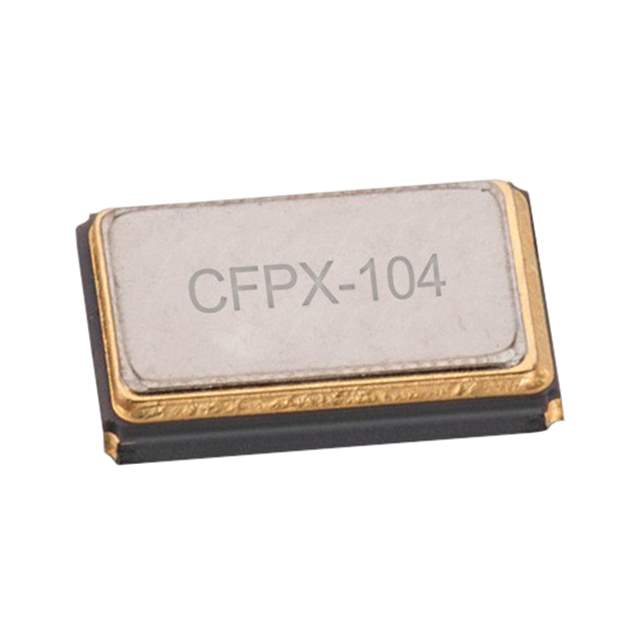

LFXTAL059540REEL Real Image
Same model may have multiple batches, images only for reference.

LFXTAL059540REEL

Part No LFXTAL059540REEL
Manufacturer IQD Frequency Products Ltd
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 10PF SMD / 8 MHz ±10ppm Crystal 10pF 150 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr IQD Frequency Products
Series CFPX-104
Package Tape & Reel (TR)
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 830105954001
Standard Package 1,000
Win Source Part Number 1109163-LFXTAL059540REEL
Ultra Librarian 3D Model Ultra Librarian LFXTAL059540REEL CAD Model

Description

The CFPX-104 series MHz crystal is a high-quality product manufactured by IQD Frequency Products, which is designed for use in various electronic applications.

  • Packaging: Tape and reel
  • Frequency: 8 MHz
  • Frequency Tolerance: ±10ppm
  • Frequency Stability: ±10ppm
  • ESR: 150 Ohms
  • Load Capacitance: 10pF
  • Mode: Fundamental
  • Temperature Range: -10°C to 60°C
  • Length: 0.197 inches
  • Width: 0.126 inches
  • Height: 0.039 inches
  • RoHS: Compliant
  • ECCN: EAR99
