Same model may have multiple batches, images only for reference.

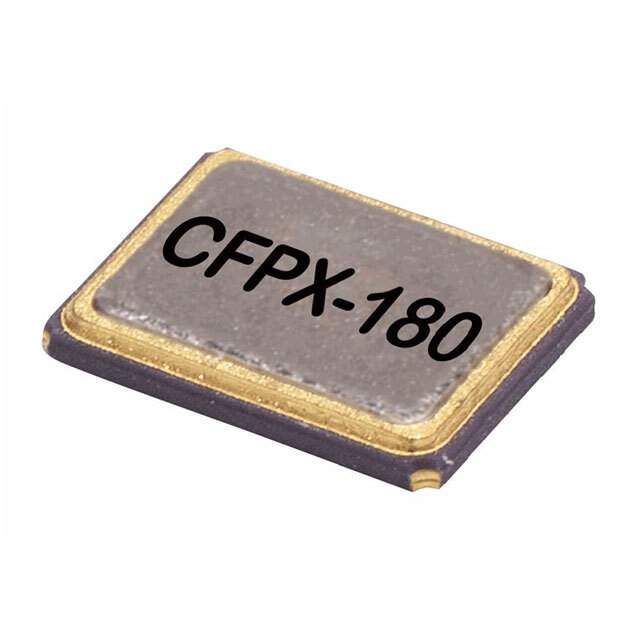

LFXTAL069882REEL Real Image
Same model may have multiple batches, images only for reference.

LFXTAL069882REEL

Part No LFXTAL069882REEL
Manufacturer IQD Frequency Products Ltd
Catalog Oscillators
Description CRYSTAL 12.0000MHZ 10PF SMD / 12 MHz ±30ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr IQD Frequency Products
Series CFPX-180
Package Tape & Reel
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 1923-1335-6,1923-1335-1,830106988201,1923-1335-2,LFXTAL069882CUTT
Standard Package 1,000
Win Source Part Number 1069512-LFXTAL069882REEL
Ultra Librarian 3D Model Ultra Librarian LFXTAL069882REEL CAD Model

Description

The LFXTAL069882REEL is a crystal oscillator with a frequency of 12MHz.

  • Frequency: 12MHz
  • Series: CFPX-180
  • Win Source part number: 1069512-LFXTAL069882REEL
  • Mounting: Surface-mount device (SMD)
  • Package: 4-SMD, no lead
  • Frequency tolerance: ±30ppm
  • Frequency stability: ±100ppm
  • Load capacitance: 10pF
  • ESR: 100 ohms
