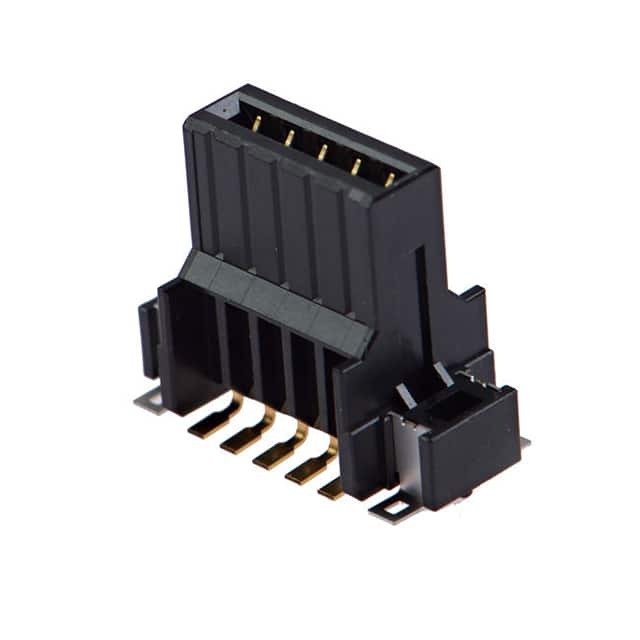

IMSA-10120S-10Z16-GFN4 IRISO
Same model may have multiple batches, images only for reference.

IMSA-10120S-10Z16-GFN4

Part No IMSA-10120S-10Z16-GFN4
Manufacturer IRISO
Catalog Rectangular Connectors
Datasheet
IMSA-10120S-10Z16-GFN4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr IRISO USA Inc.
Series 10120S
Package Bulk
Number of Positions 10
Pitch 0.079" (2.00mm)
Number of Rows 2
Base Product Number IMSA-1012
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1315390-IMSA-10120S-10Z16-GFN4
Ultra Librarian 3D Model Ultra Librarian IMSA-10120S-10Z16-GFN4 CAD Model

Description

This rectangular connector array is a high-quality product from IRISO USA Inc.

  • Win Source Part Number: 1315390-IMSA-10120S-10Z16-GFN4
  • Series: 10120S
  • Positions: 10
  • Pitch: 0.079" (2.00mm)
  • Rows: 2
  • Connection Type: Edge type, mezzanine (board to board)
  • Packaging: Bulk
  • ECCN: EAR99.69.4040
