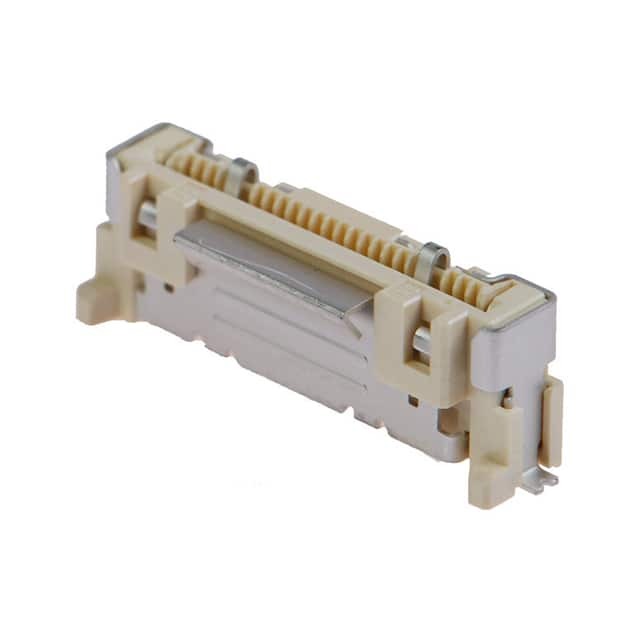

IMSA-11600S-25A-GFN4

Name: IMSA-11600S-25A-GFN4
Brand: IRISO
SKU: 1314743
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IMSA-11600S-25A-GFN4
Manufacturer	IRISO
Catalog	Flat Flex Cables (FFC, FPC)
Datasheet	IMSA-11600S-25A-GFN4 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	IRISO USA Inc.
Series	11600
Package	Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type	FFC, FPC
Mounting	SMD (SMT)
Connector/Contact Type	Contacts, Vertical - 1 Sided
Number of Positions	25
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.236" (6.00mm)
Cable End Type	Notched
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Features	Solder Retention
Voltage Rating	50V
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	3.94µin (0.10µm)
Housing Color	Natural
Base Product Number	IMSA-116
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	1314743-IMSA-11600S-25A-GFN4
Ultra Librarian 3D Model	Ultra Librarian IMSA-11600S-25A-GFN4 CAD Model

Alternative Products

Description

The IMSA-11600S-25A-GFN4 is a 25 position FFC/FPC connector from IRISO USA Inc.

Positions: 25
Pitch: 0.020" (0.50mm)
Features: Solder retention
Contact Finish: Gold
Contact Finish Thickness: 3.94μin (0.10μm)
Mounting: SMD (SMT)
Height Above Board: 0.236" (6.00mm)
Series: IMSA-11600
Type: FFC/FPC flat flex
FFC/FCB Thickness: 0.30mm
Housing Material: Liquid crystal polymer (LCP)
Housing Color: Natural
MSL Level: 1 (unlimited)
HTSUS Code: 8536.69.4051
