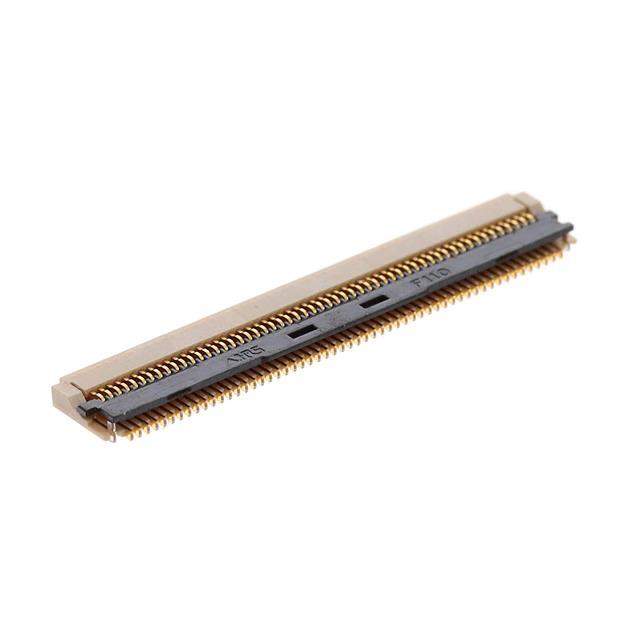

FH29DJ-110S-0.2SHW(05) Real Image
Same model may have multiple batches, images only for reference.

FH29DJ-110S-0.2SHW(05)

Part No FH29DJ-110S-0.2SHW(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 110POS 0.20MM / 110 Position FPC Connector Contacts, Bottom 0.008" (0.20mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH29D
Package Tape & Reel
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 110
Pitch 0.008" (0.20mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.047" (1.20mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 40V
Temperature Range - Operating -55°C ~ 85°C
Current Rating (Amps) 0.25A
Contact Finish Thickness 1.97µin (0.050µm)
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Base Product Number FH29DJ
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names ,26-FH29DJ-110S-0.2SHW(05)TR,580-0339-9-05,FH29DJ-110S-0.2SHW(05)-ND,26-FH29DJ-110S-0.2SHW(05)DKR,-1235-FH29DJ-110S-0.2SHW(05)TR-ND,-1235-FH29DJ-110S-0.2SHW(05)DKR,-1235-FH29DJ-110S-0.2SHW(05)CT,26-FH29DJ-110S-0.2SHW(05)CT,-1235-FH29DJ-110S-0.2SHW(05)TR
Standard Package 5,000
Win Source Part Number 1129943-FH29DJ-110S-0.2SHW(05)
Ultra Librarian 3D Model Ultra Librarian FH29DJ-110S-0.2SHW(05) CAD Model

Description

The FH29D series FFC, FPC (Flat Flexible) connectors from Hirose Electric Co Ltd are designed to provide a reliable and efficient solution for connecting FFC and FPC cables.

  • Pitch: 0.008" (0.20mm)
  • Positions: 110
  • Feature: Zero Insertion Force (ZIF)
  • Feature: Solder Retention
  • Current Rating: 0.25A
  • Voltage Rating: 40V
  • Feature: Flip Lock
  • Mounting: Surface Mount, Right Angle
  • Housing Material: Liquid Crystal Polymer (LCP), Halogen-Free
  • Actuator Color: Black
