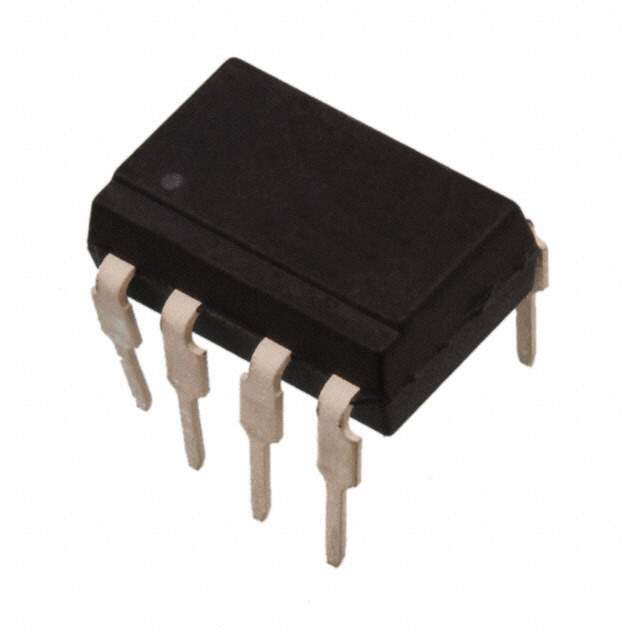

PS2505-2X Real Image
Same model may have multiple batches, images only for reference.

PS2505-2X

Part No PS2505-2X
Manufacturer Isocom Components 2004 LTD
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV 2CH TRANS 8DIP
Datasheet
PS2505-2X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Isocom Components 2004 LTD
Packaging Tube/Rail
Status Active
Number of Channels 2
Isolation Voltage 5300Vrms
Minimum DC Current Transfer Ratio 80% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type AC, DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -30°C to 100°C
Mounting Through Hole
Case / Package 8-DIP
Win Source Part Number 118762-PS2505-2X
Popularity Medium
Supply and Demand Status Balance
Quantity per package 800
Ultra Librarian 3D Model Ultra Librarian PS2505-2X CAD Model

Description

The Isocom Components 2004 LTD PS2505-2X is a high-quality optocoupler that is designed to provide reliable isolation and signal transfer in a wide range of electronic devices.

  • Manufacturer: Isocom Components 2004 LTD
  • Part Status: active
  • Suitable for: use in a wide range of electronic devices, including computers, mobile phones, and other consumer electronics
  • Packaging: tube/rail packaging
  • Mounting: through-hole mounting
