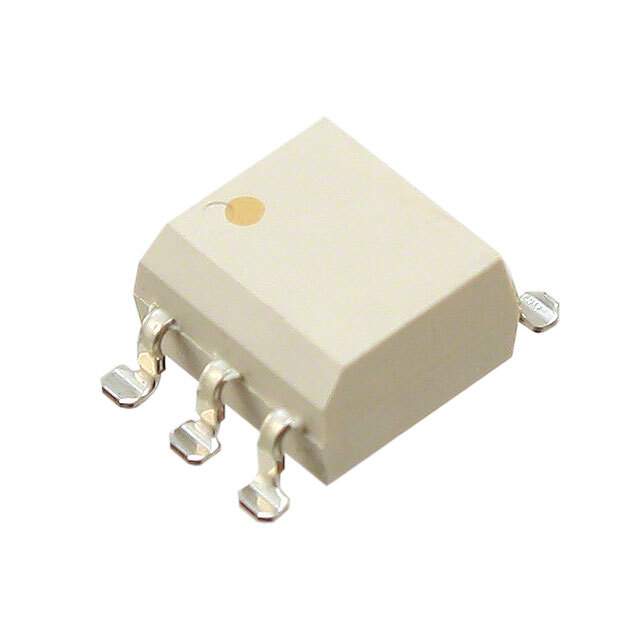

The TLP3033 is a phototriac from Isocom Components 2004 LTD, designed for isolating low voltage control signals from high voltage AC loads. It consists of an infrared LED optically coupled to a triac, allowing for switching of AC loads with minimal noise and high isolation.

Applications:

• Solid State Relays (SSRs)
• Industrial Control
• Lighting Control
• Motor Control
• Appliances

Features:

• High Isolation Voltage: Provides electrical isolation between input and output.
• Zero-Crossing Detection: Reduces EMI and RFI generation.
• Low Input Trigger Current: Requires minimal input current for activation.
• DIP Package: Easy to mount on PCBs.

Benefits:

• Safety: Protects control circuitry from high voltage hazards.
• Reduced Noise: Zero-crossing minimizes electrical noise.
• Efficiency: Low trigger current reduces power consumption.
• Reliability: Solid-state design ensures long operational life.

Additional Details:

The TLP3033 features a peak off-state voltage of 400V. It has an isolation voltage of typically 5300 Vrms. The LED trigger current is approximately 5mA. It's housed in a standard DIP package for through-hole mounting. The zero-crossing detection feature helps reduce voltage spikes and improves the life of connected AC loads. The operating temperature range is from -55°C to 100°C.
