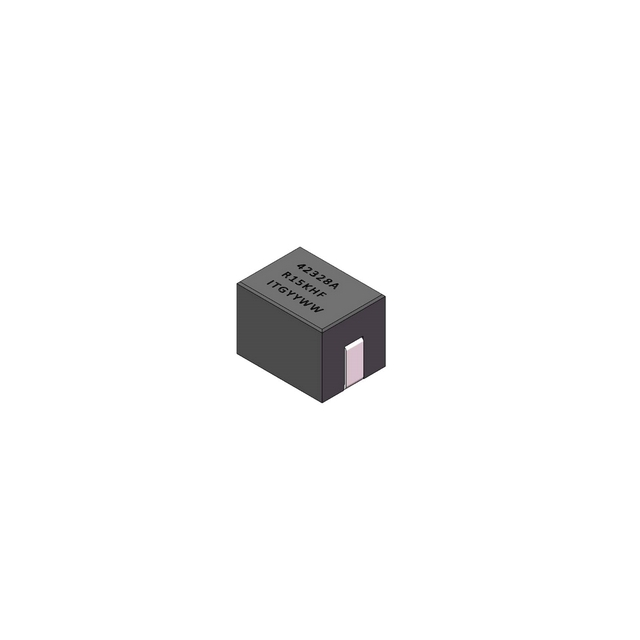

Same model may have multiple batches, images only for reference.

AH42328A-R12KHF

Name: AH42328A-R12KHF
Brand: ITG Electronics, Inc.
SKU: WS1308714
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AH42328A-R12KHF
Manufacturer	ITG Electronics, Inc.
Catalog	Fixed Inductors
Description	120 nH Shielded Inductor 73 A 0.18mOhm Nonstandard
Datasheet	AH42328A-R12KHF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1308714-AH42328A-R12KHF
Category	Inductors, Coils, Chokes >Fixed Inductors
Mfr	ITG Electronics, Inc.
Packaging	Tape & Reel (TR)
Part Status	Active
Material - Core	Ferrite
Inductance	120 nH
Tolerance	±10%
Current Rating (Amps)	73 A
Shielding	Shielded
DC Resistance (DCR)	0.18mOhm
Ultra Librarian 3D Model	Ultra Librarian AH42328A-R12KHF CAD Model

Alternative Products

Description

Ferrite based SMD inductor with lower core loss.
Inductance range: 70.0 nH to 300.0 nH , custom values are welcomed.
High current output chokes ,up to 155.0 Amp with approx. 20% roll off.
Low profile 8.22mm / 8.0mm / 7.90mm / 7.80mm typical Height.
10.90 x 8.00 mm Foot Print.
Ideal for Buck Converter, VRM & High Density Board Design.
Operating frequency of up to 5.0MHz.
Operating temperature range of -55°C to + 130°C.
RoHS & HF compliant.
T & R Qty’s: 450pcs, 13'' Reel
