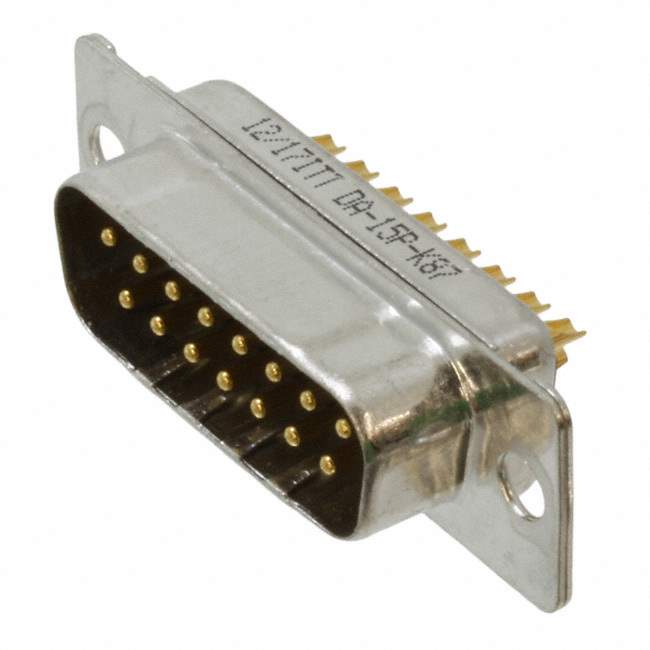

DA-15P-K87 Real Image
Same model may have multiple batches, images only for reference.

DA-15P-K87

Part No DA-15P-K87
Manufacturer ITT Cannon, LLC
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB PLUG 15POS PNL MNT / Conn D-Subminiature PIN 15 POS Solder Cup ST Panel Mount 15 Terminal 1 Port
Datasheet
DA-15P-K87 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer ITT Cannon, LLC
Series Original D
Packaging Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Mounting Panel Mount
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Features Grounding Indents
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 125°C
Current Rating 5A
Color Black
Contact Form Machined
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT)
Contact Material Copper Alloy
Win Source Part Number 772397-DA-15P-K87
Popularity Medium
Supply and Demand Status Limited
Family Name DA
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian DA-15P-K87 CAD Model

Description

The ITT Cannon Original D series is a high-performance D-sub connector designed for use in harsh environments.

  • Type: Plug, Male Pins
  • Positions: 15
  • Rows: 2
  • Housing Material: Polycyclohexylenedimethylene Terephthalate (PCT)
  • Material Flammability Rating: UL94 V-0
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Current Rating: 5A
  • Mounting: Panel Mount
  • Housing/Shell Feature: Flange (Unthreaded)
  • Family: DA
  • Applications: Military, Aerospace, Medical Equipment
