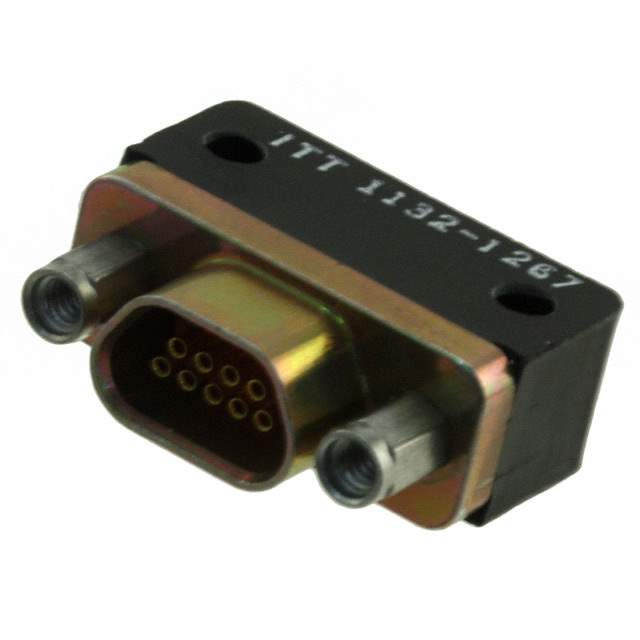

MDM-9SCBRP

Part No MDM-9SCBRP
Manufacturer ITT Cannon, LLC
Catalog D - SUB, D - SHAPED connectors
Description Micro-D PCB - .050 Contact Spacing
Datasheet
MDM-9SCBRP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer ITT Cannon, LLC
Series MIL-DTL-83513, Micro D Metal Shell (MDM)
Packaging Bulk
Connector Style D-Type, Micro-D
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Mounting Panel Mount, Through Hole, Right Angle
Flange Feature Mating Side, Female Screwlock (2-56)
Termination Solder
Features Shielded
Shell Material, Finish Aluminum, Yellow Chromate Cadmium Plated
Contact Finish Gold
Operating Temperature Range -55°C ~ 125°C
Current Rating 3A
Housing Material Liquid Crystal Polymer (LCP)
Contact Material Copper Alloy
Win Source Part Number 1221566-MDM-9SCBRP
Manufacturer Homepage www.ittcannon.com
Popularity Medium
Supply and Demand Status Limited
Family Name MDM
Introduction Date December 12, 2002
ECCN EAR99
Country of Origin United States of America
Halogen Free Unknown
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian MDM-9SCBRP CAD Model

Description

The ITT Cannon Micro D Metal Shell (MDM) series is a high-performance connector designed for use in harsh environments.

  • Connector Type: Receptacle
  • Number of Sockets: 9
  • Number of Rows: 2
  • Shell Material: Yellow chromate cadmium plated aluminum
  • Shielded: Yes
  • Contact Material: Copper alloy with a gold finish
  • Current Rating: 3A
  • Mounting Style: Through hole, right angle and panel mount
  • Mating Side Feature: Flange with a female screwlock
  • Family: MDM
  • Applications: Military, aerospace, and medical equipment
