Same model may have multiple batches, images only for reference.

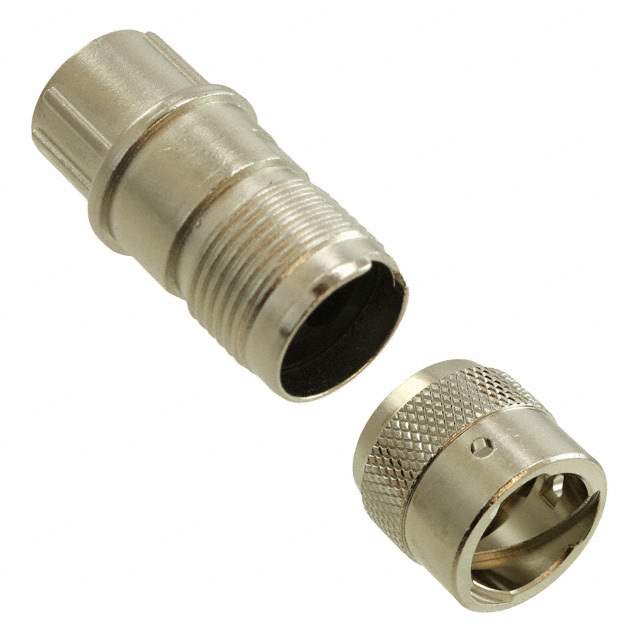

TNM6U10-0004S1L Real Image
Same model may have multiple batches, images only for reference.

TNM6U10-0004S1L

Part No TNM6U10-0004S1L
Manufacturer ITT Cannon, LLC
Catalog Circular Connectors - Housings
Datasheet
TNM6U10-0004S1L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr ITT Cannon, LLC
Series Trident Neptune Metal (TNM)
Package Bulk
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 4
Shell Size - Insert 10-0004
Contact Type Crimp and Solder Cup
Mounting Type Free Hanging (In-Line)
Fastening Type Detent Lock
Shell Material Zinc Alloy
Shell Finish Nickel
Housing Color Silver
Material Flammability Rating UL94 V-0
Features Coupling Nut
Shielding Shielded
Note Contacts Not Included
Insert Material Polyamide (PA), Nylon
Contact Shape Circular
Temperature Range - Operating -55°C ~ 105°C
Base Product Number TNM6U
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1315645-TNM6U10-0004S1L
Ultra Librarian 3D Model Ultra Librarian TNM6U10-0004S1L CAD Model

Description

The TNM6U10-0004S1L is a circular connector housing that is designed for female sockets from ITT Cannon, LLC.

  • Series: Trident Neptune Metal (TNM)
  • Positions: 4
  • Feature: Coupling nut
  • Connector Type: Plug housing
  • Contact Type: Crimp and solder cup
  • Fastening Type: Detent lock
  • Packaging: Bulk
  • Contacts Included: No
  • Shielded: Yes
  • Flammability Rating: UL94 V-0
  • MSL Level: Not Applicable
  • HTSUS: 8538.90.8180
