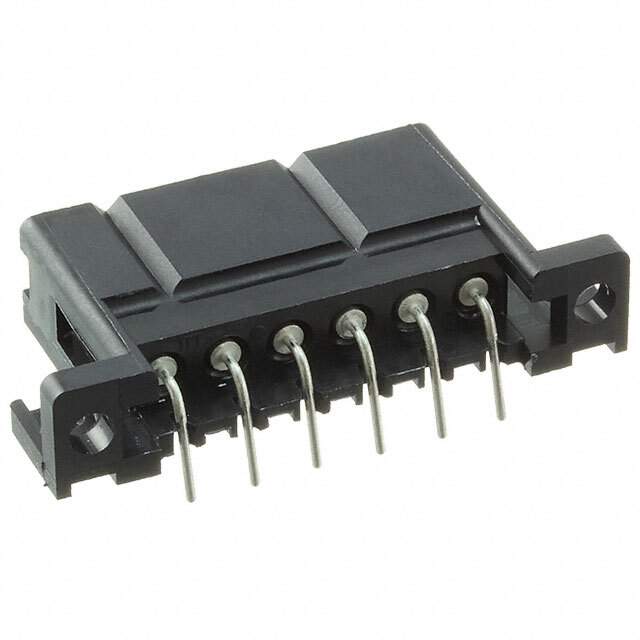

Same model may have multiple batches, images only for reference.

TST06RE01T

Name: TST06RE01T
Brand: ITT Cannon, LLC
SKU: 1339170
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TST06RE01T
Manufacturer	ITT Cannon, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 6POS 5.08MM / Connector Header Through Hole, Right Angle 6 position 0.200" (5.08mm)
Datasheet	TST06RE01T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	ITT Cannon, LLC
Series	Trident Slimline
Package	Bulk
Connector Type	Receptacle
Contact Type	Male Pin
Pitch - Mating	0.200" (5.08mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.157" (4.00mm)
Insulation Height	0.386" (9.80mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Insulation Material	Polyamide (PA) , Nylon
Features	Mounting Flange
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	10A
Voltage Rating	250V
Base Product Number	TST06
Standard Package	1
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339170-TST06RE01T
Ultra Librarian 3D Model	Ultra Librarian TST06RE01T CAD Model

Alternative Products

Description

The Trident Slimline 1339170-TST06RE01T is a 6-position male pin header connector with mounting flange manufactured by ITT Cannon, LLC.

Positions: 6
Connector Type: Header, Male Pin
Mounting Style: Board-to-Cable/Wire
Pitch: 0.200" (5.08mm)
Shrouding: Shrouded-4 Wall
Contact Finish: Tin
Insulation Material: Polyamide (PA), Nylon
Operating Temperature: -40°C to 105°C
