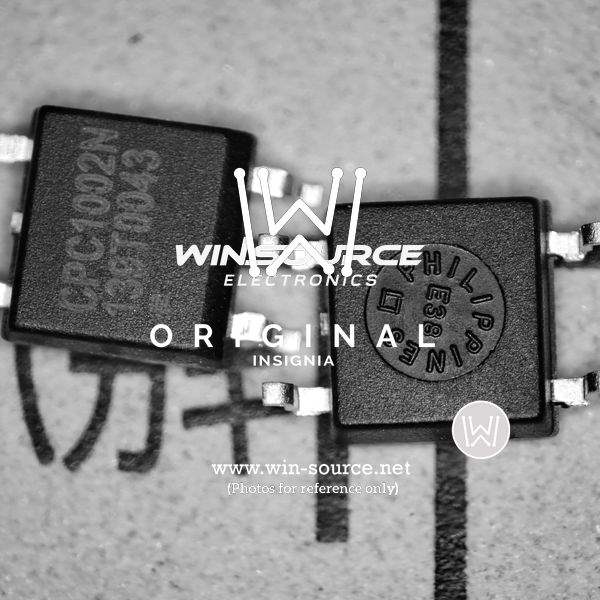

CPC1002NTR Clare, Inc. CPC1002NTR real image CPC1002NTR real image17777 CPC1002NTR real image17778 CPC1002NTR real image17779 CPC1002NTR Real Image1 CPC1002NTR Real Image2 CPC1002NTR Real Image3
Same model may have multiple batches, images only for reference.
CPC1002NTR Clare, Inc. CPC1002NTR real image CPC1002NTR real image17777 CPC1002NTR real image17778 CPC1002NTR real image17779 CPC1002NTR Real Image1 CPC1002NTR Real Image2 CPC1002NTR Real Image3
CPC1002NTR Clare, Inc. CPC1002NTR real image CPC1002NTR real image17777 CPC1002NTR real image17778 CPC1002NTR real image17779 CPC1002NTR Real Image1 CPC1002NTR Real Image2 CPC1002NTR Real Image3
Same model may have multiple batches, images only for reference.

CPC1002NTR

Part No CPC1002NTR
Manufacturer IXYS
Catalog Solid State Relays
Description SSR RELAY SPST-NO 700MA 0-60V / Solid State SPST-NO (1 Form A) 4-SOP (0.150", 3.81mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr IXYS
Series CPC, OptoMOS®
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 60 V
Load Current 700 mA
On-State Resistance (Max) 550 mOhms
Termination Style Gull Wing
Package / Case 4-SOP (0.150", 3.81mm)
Supplier Device Package 4-SOP
Base Product Number CPC1002
Standard Package 2,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 580096-CPC1002NTR
Ultra Librarian 3D Model Ultra Librarian CPC1002NTR CAD Model

Description

The 580096-CPC1002NTR is a solid-state relay in the CPC series.

  • Output: DC
  • Circuit Configuration: single-pole, single-throw normally open
  • Maximum On-State Resistance: 550 mOhms
  • Load Current Capacity: 700 mA
  • Voltage Range: 0 V to 60 V
  • Input Voltage: 1.2VDC
  • Mounting: Surface mountable
  • Package: 4-SOP package
  • Packaging: tape and reel
  • Standard Package: 2,000 pieces
  • Status: Active
  • Manufacturer: IXYS
  • Suitable for: various applications that require reliable and efficient switching of DC loads.
