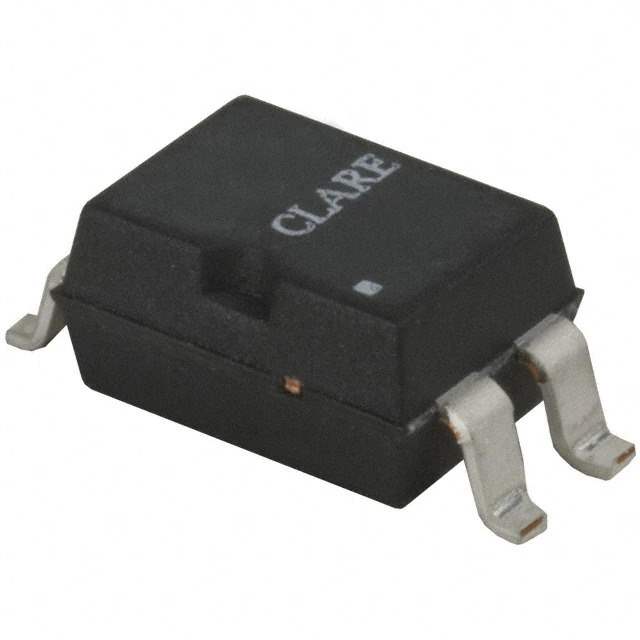

CPC1301GR Real Image
Same model may have multiple batches, images only for reference.

CPC1301GR

Part No CPC1301GR
Manufacturer IXYS
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV DARLINGTON 4-SMD / Optoisolator Darlington Output 5000Vrms 1 Channel 4-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr IXYS
Package Tube
Product Status Active
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 1000% @ 1mA
Current Transfer Ratio (Max) 8000% @ 1mA
Turn On / Turn Off Time (Typ) 1µs, 80µs
Rise / Fall Time (Typ) 40µs, 2.6µs
Input Type DC
Output Type Darlington
Voltage - Output (Max) 350V
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 1 mA
Vce Saturation (Max) 1.2V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SMD
Base Product Number CPC1301
Standard Package 100 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
California Prop 65 Warning Information
Win Source Part Number 580120-CPC1301GR
Ultra Librarian 3D Model Ultra Librarian CPC1301GR CAD Model

Description

The CPC1301GR is an optoisolator transistor with a photovoltaic output from IXYS. It comes in a tube package and has a standard package of 100 pcs.

  • Package: Tube
  • Standard Package: 100 pcs
  • Output Type: Darlington
  • Input: DC
  • Maximum Forward Current (If): 1 mA
  • Forward Voltage (Vf): 1.2V
  • Rise/Fall Time: 40μs/2.6μs
  • Voltage Isolation: 5000Vrms
  • Current Transfer Ratio: 1000% @ 1mA
  • Maximum Output Voltage: 350V
  • Mounting: Surface Mountable
  • Package: 4-SMD, gull wing
