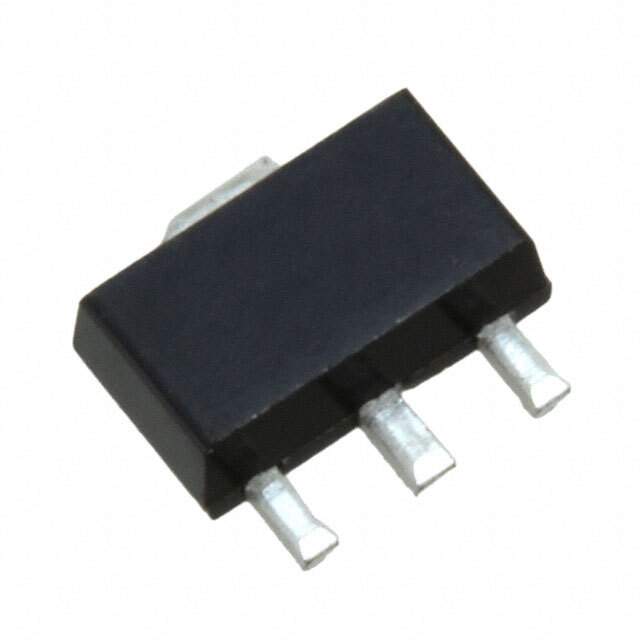

CPC3708CTR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer IXYS Integrated Circuits Division
Packaging Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 350V
Current - Continuous Drain (Id) at 25°C 5mA
Drive Voltage (Max Rds On, Min Rds On) -0.35V
Rds On (Maximum) at Id, Vgs 14Ohm at 50mA, 350mV
Maximum Vgs ±20V
FET Feature Depletion Mode
Power Dissipation (Maximum) 1.1W
Temperature Range - Operating -40°C ~ 110°C
Mounting Style SMD
Supplier Device Package SOT-89
Manufacturer Package TO-243AA
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803481-CPC3708CTR
Ultra Librarian 3D Model Ultra Librarian CPC3708CTR CAD Model

Description

The IXYS Integrated Circuits Division MOSFET (Metal Oxide) N-Channel FET is an electronic component that can be used in various applications.

  • Drain to Source Voltage (Vdss): 350V
  • FET Type: N-Channel
  • FET Feature: Depletion Mode
  • Drive Voltage (Max Rds On, Min Rds On): -0.35V
  • Rds On (Maximum) @ Id, Vgs: 14Ohm @ 50mA, 350mV
  • Power Dissipation (Maximum): 1.1W
  • Operating Temperature: -40°C ~ 110°C
  • Package: SOT-89
  • Popularity: Medium
