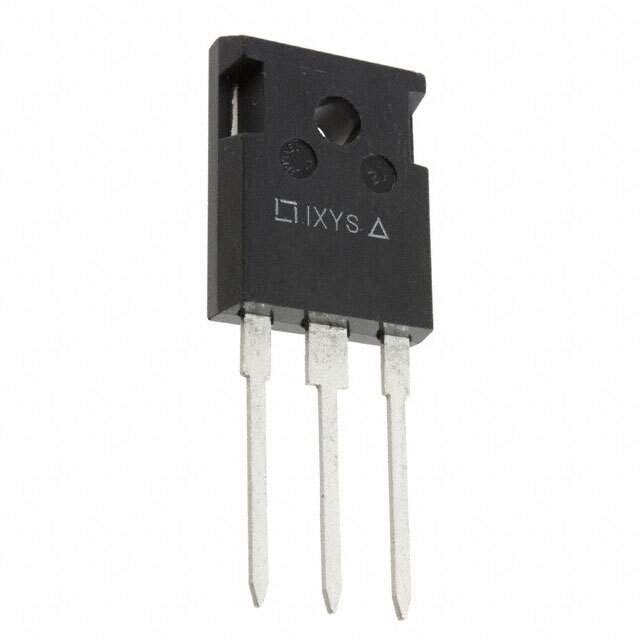

IXDH20N120 Real Image
Same model may have multiple batches, images only for reference.

IXDH20N120

Part No IXDH20N120
Manufacturer IXYS
Catalog IGBTs - Single
Description High Voltage IGBT with optional Diode
Datasheet
IXDH20N120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Maximum) 1200V
Current - Collector (Ic) (Maximum) 38A
Current - Collector Pulsed (Icm) 50A
Vce(on) (Maximum) @ Vge, Ic 3V @ 15V, 20A
Power - Max 200W
Switching Energy 3.1mJ (on), 2.4mJ (off)
Input Type Standard
Gate Charge 70nC
Test Condition 600V, 20A, 82 Ohm, 15V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-247AD
Win Source Part Number 1190969-IXDH20N120
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Family Name IXDH20N120
Introduction Date October 21, 2000
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian IXDH20N120 CAD Model

Description

The IXDH20N120 is an NPT IGBT manufactured by IXYS.

  • Package: TO-3P-3 full pack
  • Maximum Power: 200W
  • Voltage Collector-Emitter Breakdown: 1200V
  • Maximum Collector Current: 38A
  • Switching Energy (On): 3.1mJ
  • Switching Energy (Off): 2.4mJ
  • Gate Charge: 70nC
  • Current Collector Pulsed (Icm): 50A
  • Supply Status: Limited
  • Popularity: Medium
  • Alternative Parts: NGTG15N120FL2WG, NGTB15N120FL2WG, and IRG4PH40K
  • Introduction Date: October 21, 2000
  • ECCN: EAR99
