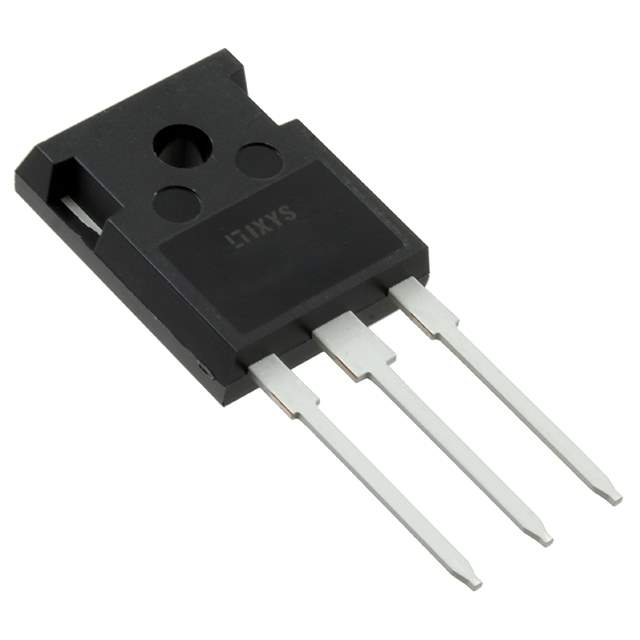

IXFH88N30P Real Image
Same model may have multiple batches, images only for reference.

IXFH88N30P

Part No IXFH88N30P
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 300V 88A TO-247
Datasheet
IXFH88N30P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 300V
Continuous Drain Current at 25°C 88A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 5V @ 4mA
Max Gate Charge 180nC @ 10V
Max Input Capacitance 6300pF @ 25V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 600W (Tc)
Maximum Rds On at Id,Vgs 40 mOhm @ 44A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-247AD (IXFH)
Dimension TO-247-3
Win Source Part Number 1049460-IXFH88N30P
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IXFH88N30P CAD Model

Description

The IXYS IXFH88N30P is an N-channel MOSFET designed for use in discrete semiconductor products.

  • Drain-Source Breakdown Voltage: 300V
  • Maximum Rds On @ Id,Vgs: 40 mOhm @ 44A, 10V
  • Power Dissipation (max): 600W (Tc)
  • Continuous Drain Current @ 25°C: 88A (Tc)
  • Gate-Source Threshold Voltage: 5V @ 4mA
  • Maximum Gate-Source Voltage: ±20V
  • Maximum Gate Charge: 180nC @ 10V
  • Maximum Input Capacitance: 6300pF @ 25V
  • Operating Temperature: -55°C to 150°C (TJ)
  • Mounting: Through-Hole
  • Case/Package: TO-247AD (IXFH)
  • Popularity: Medium
